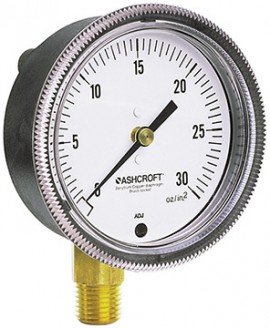

Image is for reference only, refer to product info for complete details.
Designed for low-pressure measurement, it offers reliability and performance with its ultra-sensitive diaphragm measuring system, ideal for non-corrosive gas measurement. It features a glass-filled polysulfone case, 2.5" dial, 1/4 NPT center back mount connection, beryllium copper diaphragm and brass socket, ±2% of span accuracy and a pressure range of 0 to 5 psi.
Designed for low-pressure measurement, it offers reliability and performance with its ultra-sensitive diaphragm measuring system, ideal for non-corrosive gas measurement. It features a glass-filled polysulfone case, 2.5" dial, 1/4 NPT center back mount connection, beryllium copper diaphragm and brass socket, ±2% of span accuracy and a pressure range of 0 to 5 psi.
This low pressure diaphragm gauge is designed to measure pressure from 0 to 5 psi, both positive and negative pressures. This gauge uses a very sensitive diaphragm capsule to measure low pressure and vacuum. It is specifically designed for use whenever the pressure medium is a gas that is not corrosive to beryllium copper, brass, polysulfone and RTV silicone. The polysulfone case is suitable for intermittent or continuous service on natural gas provided a .013 throttle plug is installed in the socket.
Features
Applications
| Accuracy | ±2-1-2% full scale (Grade A, ASME B40.100) |
| Range | 0 to 5 psi |
| Dial Size | 2½" |
| Case Material | Black, glass filled polysulfone |
| Socket Material | Brass |
| Sensing Element | Beryllium copper diaphragm |
| Wetted Material | Beryllium copper, brass, polysulfone and RTV silicone |
| Connection Size | 1/4 NPT |
| Connection Location | Center back |
| Accuracy | ±2-1-2% full scale (Grade A, ASME B40.100) |
| Range | 0 to 5 psi |
| Dial Size | 2½" |
| Case Material | Black, glass filled polysulfone |
| Socket Material | Brass |
| Sensing Element | Beryllium copper diaphragm |
| Wetted Material | Beryllium copper, brass, polysulfone and RTV silicone |
| Connection Size | 1/4 NPT |
| Connection Location | Center back |
