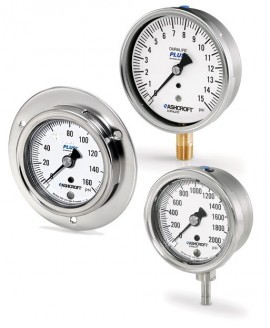

Image is for reference only, refer to product info for complete details.
Offers high quality and reliability, the pressure gauge has all welded stainless steel and a removable bayonet ring for access to small adjustments. Comes in a 2.5" dial with a True Zero feature to minimize reading errors.
Offers high quality and reliability, the pressure gauge has all welded stainless steel and a removable bayonet ring for access to small adjustments. Comes in a 2.5" dial with a True Zero feature to minimize reading errors.
Features
Applications
| Accuracy | ±1% of span (Dry) (ASME B40.100 Grade 1A) ±1.5% of span (Liquid filled) |
| Dial Sizes | 2.5", 3.5" |
| Ranges | AW: Vacuum, compound, to 1,000 psi SW: Vacuum, compound to 15,000 ps |
| Process Connection Location | Lower, lower back, top, 3 o’clock, 9 o’clock |
| Process Connection Size | ¼ NPT Male, ½ NPT Male |
| Dial | Black figures on white background |
| Pointer | Black, aluminum |
| Weather Protection | IP65 (Plug closed), IP54 (Plug vented) NEMA 4 (Plug closed) |
| Mounting Option | U-clamp, front or back flange |
| Movement | 304 SS with glass filled polyester segment |
| Accuracy | ±1% of span (Dry) (ASME B40.100 Grade 1A) ±1.5% of span (Liquid filled) |
| Dial Sizes | 2.5", 3.5" |
| Ranges | AW: Vacuum, compound, to 1,000 psi SW: Vacuum, compound to 15,000 ps |
| Process Connection Location | Lower, lower back, top, 3 o’clock, 9 o’clock |
| Process Connection Size | ¼ NPT Male, ½ NPT Male |
| Dial | Black figures on white background |
| Pointer | Black, aluminum |
| Weather Protection | IP65 (Plug closed), IP54 (Plug vented) NEMA 4 (Plug closed) |
| Mounting Option | U-clamp, front or back flange |
| Movement | 304 SS with glass filled polyester segment |
