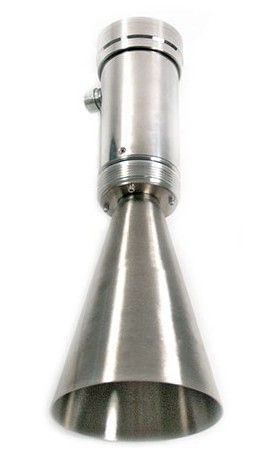

Easy to use and versatile, the true echo dual-frequency pulse radar level transmitter provides accuracy and precision for difficult-to-read solids, including powders, pellets, or granules. With programmable echo masking and damping factors, the transmitter automatically adjusts signal power for optimal accuracy and clarity.
Easy to use and versatile, the true echo dual-frequency pulse radar level transmitter provides accuracy and precision for difficult-to-read solids, including powders, pellets, or granules. With programmable echo masking and damping factors, the transmitter automatically adjusts signal power for optimal accuracy and clarity.
With an isolated 4-20 mA output and push-button field calibration, the pulse radar level transmitter offers easy installation and setup.
Features
Applications
| Performance | |
| Frequency | 6.3 GHz and 26 GHz |
| Accuracy | ±0.25% of measured range |
| 4-20 mA Resolution | 6.1 μA (approximately 2622 digital counts across range) |
| Target Dielectric Constant | εr > 2 |
| Connectivity | |
| Output | 4-20 mA (shared common or isolated); HART |
| Electrical | |
| Loop Resistance | RL = (VS - 6) / 24 mA |
| Environmental | |
| Enclosure Operating Temperature | -40 to 140°F (-40 to 60°C) |
| Certifications | FCC: Part 15 for low power communications class II install |
| Performance | |
| Frequency | 6.3 GHz and 26 GHz |
| Accuracy | ±0.25% of measured range |
| 4-20 mA Resolution | 6.1 μA (approximately 2622 digital counts across range) |
| Target Dielectric Constant | εr > 2 |
| Connectivity | |
| Output | 4-20 mA (shared common or isolated); HART |
| Electrical | |
| Loop Resistance | RL = (VS - 6) / 24 mA |
| Environmental | |
| Enclosure Operating Temperature | -40 to 140°F (-40 to 60°C) |
| Certifications | FCC: Part 15 for low power communications class II install |
