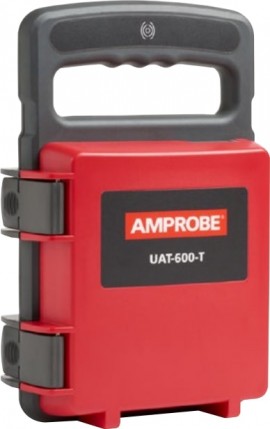

Amprobe UAT-600-T Transmitter-

Downloads: datasheet manual

More Amprobe Products

Ask an Expert

Amprobe UAT-600-T Transmitter

Model: UAT-600-T | UPC: 095969873758

Intuitive, this transmitter automatically chooses the correct locating function based on the connected accessory and includes selectable 8/33 kHz frequencies.

Intuitive, this transmitter automatically chooses the correct locating function based on the connected accessory and includes selectable 8/33 kHz frequencies.

Sale Price $1775.44 USD
Regular Price $2284.99 USD
Availability 13 to 14 Weeks
Quantity

Recommended Accessories

Amprobe TL-600-25M Extension Test Lead-

Amprobe TL-600-25M Extension Test Lead

TL-600-25M

Amprobe TL-UAT-600 Test Lead and Accessory Kit, UAT-600 series-

Amprobe TL-UAT-600 Test Lead and Accessory Kit, UAT-600 series

TL-UAT-600

Amprobe UAT-600-R Receiver-

Amprobe UAT-600-R Receiver

UAT-600-R

Amprobe UAT-600-T Offers

Features

  • Locate non-metallic pipes and sewer lines
  • Locate energized 50/60 Hz cables carrying current
  • Identify the location of all metallic utilities: pipes*, energized and de-energized cables
  • Take depth and current measurements
  • Measure voltage, resistance and output current

Transmitter active modes

  • Induction: will automatically start to wirelessly induce a signal into buried pipes, cables, or wires where there is no access to the line to connect test leads or a clamp
  • Direct connection with test leads: the most reliable method to trace individual cable or a pipe

*Tracing of non-metallic pipes and conduits is possible after inserting metal fish tape or cable

Applications

  • Commercial and residential construction
  • Electrical utilities distribution
  • Water, gas and electric installation and repairs
  • Pipe laying
  • Outdoor facilities maintenance
  • Cable TV and telecommunication
  • Electrical and general contracting

Amprobe UAT-600-T Specifications

Measurement Category CAT IV 600 V
Operating Voltage/Current 0 to 600 V
Display Backlight Yes
Audio Indication Fast beeps showing the better signal is applied
Transmitting Mode Power Output Max. 3 watts
Output Voltage Max. 50 V rms
Display LCD display (LED backlight) 2.4 in x 1.3"
Operating Temperature and Humidity -4 to 122°F (-20 to 50°C), ≤90% RH
Storage Temperature and Humidity -40 to 140°F (-40 to 60°C), ≤90% RH
Operating Altitude <6561' (<2000 m)
Size (H x W x L) Approximately 14 x 9 x 4.7" (355 x 230 x 120 mm)
Weight Approximately 7 lb (3.2 kg) (batteries installed)
Click here for complete specifications on the Amprobe UAT-600-T

What's included with the Amprobe UAT-600-T

  • Amprobe UAT-600-T Transmitter
datasheet for the Amprobe UAT-600-T Transmitter manual for the Amprobe UAT-600-T Transmitter

Click on a category to view a selection of compatible accessories with the Amprobe UAT-600-T Transmitter.

Amprobe TL-600-25M Extension Test Lead TL-600-25M
An extension test lead of 80'.



Amprobe TL-UAT-600 Test Lead and Accessory Kit, UAT-600 series TL-UAT-600
Used to locate underground utilities in “Direct Test Leads Connection Mode” with the UAT-600 transmitter and receiver and is for use with the UAT-600 series underground utilities locator kits.



Amprobe UAT-600-R Receiver UAT-600-R
Featuring a high-contrast display that allows for clear viewing in full sunlight as well as an automatic backlight for shaded and dark areas, this receiver can locate underground utilities up to 20' (6 m).
