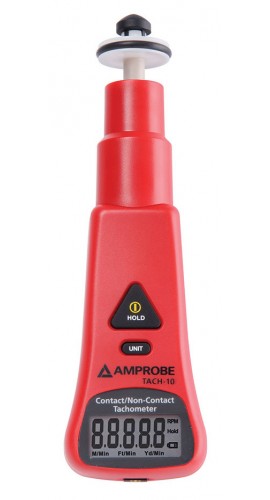

Amprobe TACH-10 Contact and Non-Contact Tachometer

Model: TACH10 | Order No: TACH-10 | UPC: 095969556699

Be the first to review this product

Amprobe TACH-10 Contact and Non-Contact Tachometer-

Downloads: datasheet manual

More Amprobe Products

Ask an Expert

Amprobe TACH-10 Contact and Non-Contact Tachometer

Model: TACH10 | Order No: TACH-10 | UPC: 095969556699

Be the first to review this product

The tachometer is for measuring rotational or surface speed, either in contact or non-contact ways. It can be used to measure the rotational speed of motors, conveyor belts, and other moving or rotating systems.

Sale Price	$209.78 USD
Regular Price	$269.99 USD
Availability	1 to 2 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your TACH-10 Contact and Non-Contact Tachometer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTITA1) for only $170.00 USD

Traceable Calibration Certificate for your TACH-10 Contact and Non-Contact Tachometer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTITA1) for only $170.00 USD

Amprobe TACH-10 Contact and Non-Contact Tachometer

Features

Measures rotational and surface speed
User selectable units for contact measurement: RPM, m/min, ft/min, yd/min
Non-contact measurement in RPM
Digital display
Auto power off function
Easy to select units and mode functions

Amprobe TACH10 Specifications

Measuring Ranges
Rotation	Non-Contact: 10 to 99999 RPM Contact: 10 to 19999 RPM
Surface Speed (Contact)	1.0000 to 9999.9 m/min 3.0000 to 30,000 ft/min 1.0 to 10,000 yd/min
Resolution
RPM Unit	0.001/0.01/0.1/1
M/Min Unit	0.0001/0.001/0.01/0.1
Ft/Min Unit	0.0001/0.001/0.01/0.1
Yd/Min Unit	0.0001/0.001/0.01/0.1
General Specifications
Accuracy	±(0.1% of rdg.+2 digit)
Temperature	Operating: 0 to 50°C (32 to 122°F) Storage: -10 to 50°C (14 to 122°F)
RH%	Operating: Humidity < 80% Storage: Humidity < 90%
EMC	EN 61326-1
LCD size	0.6 x 1.3" (15 x 33 mm)
Measure Distance	2 to 13" (5 to 30 cm) (non-contact)
Sampling Time	1 second (>60 RPM), >1 second (10 to 60 RPM)
Time Base	4.0 Mhz quartz crystal
Battery	9 V battery
Power Consumption	5 μA (Idle), 18 mA (measurement)
Dimensions	10.5 x 7 x 3.2" (266.6 x 177.8 x 81.28 mm)
Weight	1.2 lbs (544.3 g)

Click here for complete specifications on the Amprobe TACH10

What's included with the Amprobe TACH10

Tachometer
Users Manual
Reflective Tape
Batteries (Installed)

datasheet for the Amprobe TACH-10 Contact and Non-Contact Tachometer manual for the Amprobe TACH-10 Contact and Non-Contact Tachometer

Ask a question about Amprobe TACH-10 Contact and Non-Contact Tachometer

Customer Reviews for the Amprobe TACH10

Description ➕➖

Amprobe TACH-10 Contact and Non-Contact Tachometer

Features

Measures rotational and surface speed
User selectable units for contact measurement: RPM, m/min, ft/min, yd/min
Non-contact measurement in RPM
Digital display
Auto power off function
Easy to select units and mode functions

Specifications ➕➖

Amprobe TACH10 Specifications

Measuring Ranges
Rotation	Non-Contact: 10 to 99999 RPM Contact: 10 to 19999 RPM
Surface Speed (Contact)	1.0000 to 9999.9 m/min 3.0000 to 30,000 ft/min 1.0 to 10,000 yd/min
Resolution
RPM Unit	0.001/0.01/0.1/1
M/Min Unit	0.0001/0.001/0.01/0.1
Ft/Min Unit	0.0001/0.001/0.01/0.1
Yd/Min Unit	0.0001/0.001/0.01/0.1
General Specifications
Accuracy	±(0.1% of rdg.+2 digit)
Temperature	Operating: 0 to 50°C (32 to 122°F) Storage: -10 to 50°C (14 to 122°F)
RH%	Operating: Humidity < 80% Storage: Humidity < 90%
EMC	EN 61326-1
LCD size	0.6 x 1.3" (15 x 33 mm)
Measure Distance	2 to 13" (5 to 30 cm) (non-contact)
Sampling Time	1 second (>60 RPM), >1 second (10 to 60 RPM)
Time Base	4.0 Mhz quartz crystal
Battery	9 V battery
Power Consumption	5 μA (Idle), 18 mA (measurement)
Dimensions	10.5 x 7 x 3.2" (266.6 x 177.8 x 81.28 mm)
Weight	1.2 lbs (544.3 g)
