Amprobe SOLAR-500 Solar Analyzer

Model: SOLAR-500 | UPC: 095969499224

Be the first to review this product

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Solar Energy Meters category for similar products.

Or let's do a search and help you find what you need:

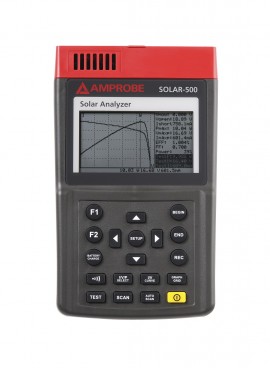

Amprobe SOLAR-500 Solar Analyzer

This analyzer is used in the installation of solar panels to determine the proper inverter size, optimum power output position of panels and identifies broken or worn-out cells.

I-V Curve test for solar cell
Maximum Solar Power (Pmax) search by auto-scan (60V, 6A)
Maximum Voltage (Vmaxp) at Pmax
Maximum Current (Imaxp) at Pmax
Voltage at open circuit (Vopen)
Current at short circuit (Ishort)
I-V curve with cursor
Calculation of panel efficiency (%)
Manual single point test
Users manual x 1, Software Manual x 1, 1.2V AA rechargeable batteries x 8, AC adaptor x 1,RS232C (to USB Bridge) cable x 1, Software CD x 1, Kelvin Clips (6A max) x 1 set

What's included with the Amprobe SOLAR-500

Amprobe SOLAR-500 Solar Analyzer

datasheet for the Amprobe SOLAR-500 Solar Analyzer datasheet for the Amprobe SOLAR-500 Solar Analyzer
