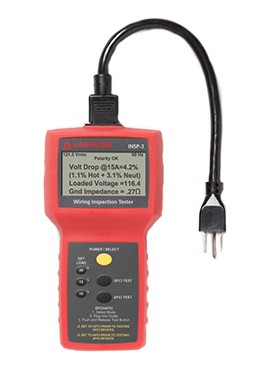

Amprobe INSP-3 Wiring Inspector Tester

Model: INSP-3 | UPC: 095969516181

Be the first to review this product

Downloads: datasheet manual

More Amprobe Products

Ask an Expert

Amprobe INSP-3 Wiring Inspector Tester

Model: INSP-3 | UPC: 095969516181

Be the first to review this product

The rugged wiring inspector tester verifies in seconds whether a building’s wiring (including voltage drop under load) complies with electrical code, saving time by eliminating guesswork.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Extech CB10 AC Circuit Breaker Finder/Receptacle Tester

Model: CB10

Locate circuit breakers and test receptacle wiring with this AC circuit finder/receptacle tester. With a variable sensitivity adjustment to pinpoint correct circuit breakers, this tester allows users to quickly locate 110 to 125 V AC circuit breakers and fuses with audible and visual circuit breaker indications.

Learn More

Klein Tools RT310 AFCI/GFCI Outlet Tester

Model: RT310

The AFCI/GFCI receptacle tester detects an electrical outlet's wiring conditions and inspects AFCI and GFCI devices. It is meant to be used with 120 V North American outlets and can detect and identify the most common wiring faults.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Amprobe INSP-3 Wiring Inspector Tester

Testing efficiency - relevant test data (voltage, voltage drop, hot and neutral voltage drop, voltage with load, ground impedance) is presented on a single large display to save operator time - no scrolling or switching screens needed
Verifies if wiring is tested for load carrying ability that it meets electrical code recommendations for voltage drop under load
Meter detects faulty wiring in need of repair without removing outlets cover plates, or panel covers:
- Faulty splices and connections
- Incorrect wiring
- Undersized wiring
- Faulty GFCIs,
- Faulty or incorrectly wired AFCIs
- Incorrect line voltage
- Poor ground quality
User selectable 0, 10,15 and 20 amps loads to verify performance of the electrical system
Incorrect wiring or voltage drop test failure is clearly indicated by flashing screen
Will not trip circuit breakers or blow fuses during the test
Tests GFCI and AFCI operations
Check ground quality for safety and ability to support sensitive electronic equipment
Measure fault currents
Save money and time by eliminating guess work

NOTE: The Inspector™ III does not check the condition of wiring insulation.

Amprobe INSP-3 Specifications

Load	Constant 10, 15 or 20 AMP simulation regardless of line voltage
Operating Voltage	95 V AC to 120 V AC
Battery	9 V Alkaline
Fuse	½ Amp, 125 V
Trip	GFI: 6.0 mA nominal to trip GFI, 30 mA to trip RCD AFCI: Up to 8, 120 AMP pulses within ½ second period
Operating Temperature	0 to 50 °C (32 to 120°F)
Accuracy	±2%, ± 2 digits

Click here for complete specifications on the Amprobe INSP-3

What's included with the Amprobe INSP-3

Wiring Inspector Tester
Power Cord
Carrying Case
9 V Alkaline Battery (Installed)

datasheet for the Amprobe INSP-3 Wiring Inspector Tester manual for the Amprobe INSP-3 Wiring Inspector Tester

Ask a question about Amprobe INSP-3 Wiring Inspector Tester

Customer Reviews for the Amprobe INSP-3

Description ➕➖

Amprobe INSP-3 Wiring Inspector Tester

Testing efficiency - relevant test data (voltage, voltage drop, hot and neutral voltage drop, voltage with load, ground impedance) is presented on a single large display to save operator time - no scrolling or switching screens needed
Verifies if wiring is tested for load carrying ability that it meets electrical code recommendations for voltage drop under load
Meter detects faulty wiring in need of repair without removing outlets cover plates, or panel covers:
- Faulty splices and connections
- Incorrect wiring
- Undersized wiring
- Faulty GFCIs,
- Faulty or incorrectly wired AFCIs
- Incorrect line voltage
- Poor ground quality
User selectable 0, 10,15 and 20 amps loads to verify performance of the electrical system
Incorrect wiring or voltage drop test failure is clearly indicated by flashing screen
Will not trip circuit breakers or blow fuses during the test
Tests GFCI and AFCI operations
Check ground quality for safety and ability to support sensitive electronic equipment
Measure fault currents
Save money and time by eliminating guess work

NOTE: The Inspector™ III does not check the condition of wiring insulation.

Specifications ➕➖

Amprobe INSP-3 Specifications

Load	Constant 10, 15 or 20 AMP simulation regardless of line voltage
Operating Voltage	95 V AC to 120 V AC
Battery	9 V Alkaline
Fuse	½ Amp, 125 V
Trip	GFI: 6.0 mA nominal to trip GFI, 30 mA to trip RCD AFCI: Up to 8, 120 AMP pulses within ½ second period
Operating Temperature	0 to 50 °C (32 to 120°F)
Accuracy	±2%, ± 2 digits
