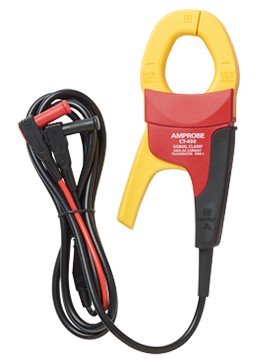

Features a measurement category of CAT IV 600 V, CAT III 1000 V, and an operating voltage of 0 to 1000 V AC, and is for use with the AT-6010 Advanced Wire Tracer Kit.
Features a measurement category of CAT IV 600 V, CAT III 1000 V, and an operating voltage of 0 to 1000 V AC, and is for use with the AT-6010 Advanced Wire Tracer Kit.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Sensors category for similar products.
Or let's do a search and help you find what you need:
| Measurement Category | CAT IV 600 V, CAT III 1000 V |
| Operating | Voltage: 0 to 1000 V AC Frequency: Wire tracing: 32.768 kHz AC current measurement: 45 to 400 Hz |
| Response Time | Instantaneous |
| Current Output of Signal (Typical) | 1 mA/A for AC current measurement with multimeter |
| Signal Voltage Output (Nominal) | De-energized circuit: 2.4 V RMS, 24 Vp-p |
| Environmental Conditions | Temperature: 32 to 122°F (0 to 50°C) Altitude: 0 to 6561' (2000 m) Humidity: 95%: 50 to <86°F (10 to <30°C) 75%: 86 to <104°F (30 to <40°C) 45%: 104 to <122°F (40 to <50°C) |
| Storage Temperature and Humidity | -4 to 158°F (-20 to 70°C), <95% RH |
| Pollution Degree | 2 |
| IP Rating | IP 40 |
| Drop Test | 3.28' (1 m) |
| Maximum Conductor Size | 1.26" (32 mm) |
| Certifications | CSA, CE |
| Dimensions | Approximately 5.9 x 2.75 x 1.18" (150 x 70 x 30 mm) |
| Weight | Approximately 0.25 lbs (0.114 kg) |
| Measurement Category | CAT IV 600 V, CAT III 1000 V |
| Operating | Voltage: 0 to 1000 V AC Frequency: Wire tracing: 32.768 kHz AC current measurement: 45 to 400 Hz |
| Response Time | Instantaneous |
| Current Output of Signal (Typical) | 1 mA/A for AC current measurement with multimeter |
| Signal Voltage Output (Nominal) | De-energized circuit: 2.4 V RMS, 24 Vp-p |
| Environmental Conditions | Temperature: 32 to 122°F (0 to 50°C) Altitude: 0 to 6561' (2000 m) Humidity: 95%: 50 to <86°F (10 to <30°C) 75%: 86 to <104°F (30 to <40°C) 45%: 104 to <122°F (40 to <50°C) |
| Storage Temperature and Humidity | -4 to 158°F (-20 to 70°C), <95% RH |
| Pollution Degree | 2 |
| IP Rating | IP 40 |
| Drop Test | 3.28' (1 m) |
| Maximum Conductor Size | 1.26" (32 mm) |
| Certifications | CSA, CE |
| Dimensions | Approximately 5.9 x 2.75 x 1.18" (150 x 70 x 30 mm) |
| Weight | Approximately 0.25 lbs (0.114 kg) |
