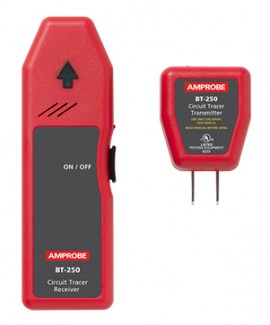

Amprobe BT-250 Breaker Tracer

Model: BT-250 | UPC: 095969366274

Be the first to review this product

Downloads: datasheet manual

More Amprobe Products

Ask an Expert

Amprobe BT-250 Breaker Tracer

Model: BT-250 | UPC: 095969366274

Be the first to review this product

The circuit breaker tester works on powered systems from 90 to 250 V AC and is for use in residential and light commercial environments.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Amprobe BT-120 Circuit Breaker Tracer

Model: BT-120

The circuit breaker tracer is for quickly and easily identifying breakers on energized systems. It works on all electrical systems from 90 V to 120 V AC to meet the latest code requirements.

Learn More

Amprobe BT-250 Breaker Tracer

Features

Identifies circuit breaker location
Works on all electrical systems from 90 to 250 VAC
Perfect for office, residential and HVAC/R applications
Automatic sensitivity adjustment
Quick and easy to use
Extremely accurate reading always finds the right breaker
Durable and dependable

Amprobe BT-250 Specifications

Operating Voltage	90 to 280 VAC
Sensitivity	Illuminates green arrow, vibrates and beeps at 0.16" (4 mm) distance from a wire carrying 120 VAC
Operating Temperature	32 to 104° (0 to 40°C); RH < 80% RH
Environment	< 2000 m, indoor operation
Power	9 volts alkaline battery NEDA 1604D, IEC 6F22
Auto Power Off	Approximately 4 minutes
Dimensions	Overall: 9.6 x 6.6 x 2" (244 x 166 x 51 mm) Transmitter: 2.8 x 1.9 x 1.2" (71 x 47 x 30 mm) Receiver: 6 x 2 x 0.9" (152 x 50 x 23 mm)
Weight	Overall: 1.1 lbs (497 g) Transmitter: 0.1 lbs (44 g) Receiver: 0.2 lbs (102 g)

Click here for complete specifications on the Amprobe BT-250

What's included with the Amprobe BT-250

Transmitter
Receiver
Connection Cable
Light Fixture Adapter
Carrying Case
Batteries (Installed)

datasheet for the Amprobe BT-250 Breaker Tracer manual for the Amprobe BT-250 Breaker Tracer

Ask a question about Amprobe BT-250 Breaker Tracer

Customer Reviews for the Amprobe BT-250

Description ➕➖

Amprobe BT-250 Breaker Tracer

Features

Identifies circuit breaker location
Works on all electrical systems from 90 to 250 VAC
Perfect for office, residential and HVAC/R applications
Automatic sensitivity adjustment
Quick and easy to use
Extremely accurate reading always finds the right breaker
Durable and dependable

Specifications ➕➖

Amprobe BT-250 Specifications

Operating Voltage	90 to 280 VAC
Sensitivity	Illuminates green arrow, vibrates and beeps at 0.16" (4 mm) distance from a wire carrying 120 VAC
Operating Temperature	32 to 104° (0 to 40°C); RH < 80% RH
Environment	< 2000 m, indoor operation
Power	9 volts alkaline battery NEDA 1604D, IEC 6F22
Auto Power Off	Approximately 4 minutes
Dimensions	Overall: 9.6 x 6.6 x 2" (244 x 166 x 51 mm) Transmitter: 2.8 x 1.9 x 1.2" (71 x 47 x 30 mm) Receiver: 6 x 2 x 0.9" (152 x 50 x 23 mm)
Weight	Overall: 1.1 lbs (497 g) Transmitter: 0.1 lbs (44 g) Receiver: 0.2 lbs (102 g)
