Amprobe BAT-500 Battery Capacity Tester

Model: BAT-500 | UPC: 095969499187

Be the first to review this product

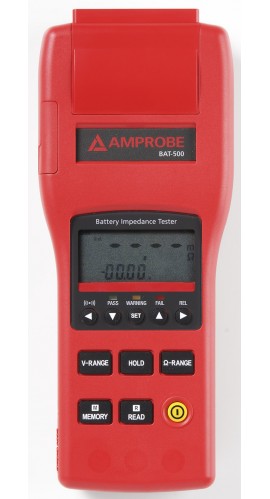

Amprobe BAT-500 Battery Capacity Tester-

Downloads: datasheet manual

More Amprobe Products

Ask an Expert

Amprobe BAT-500 Battery Capacity Tester

Model: BAT-500 | UPC: 095969499187

Be the first to review this product

Quick and accurate battery testing without taking the batteries off line. Comparator function with pass/fail indication speeds testing of batteries up to 500Ah.

Sale Price	$1308.22 USD
Regular Price	$1698.99 USD
Availability	1 to 2 Weeks
Quantity	Quantity

Amprobe BAT-500 Offers

The battery impedance tester is a battery capacity tester for assessing impedance, resistance, voltage, and power capacity of nickel cadmium (NiCd), nickel-metal hydride (NiMH), lithium-ion (Li-ion), lead-acid, and alkaline batteries.

Features

Tests battery capacity to calculate its true life
Works with most batteries, compact storage batteries, alkaline and lead-acid up to 500Ah
Resistance measurement up to 40 ohms, and voltage up to 40V
Tests are performed without shutting down a battery
Simultaneously measure battery resistance and voltage
Comparator function to quickly access conditions as Pass,Warning, or Fail
99 memory locations to store results with read function
Compact and lightweight
RS232 PC Interface to download testing results to a PC for trending/life cycle analysis

Applications

Power Back-Up
UPS Systems

Amprobe BAT-500 Specifications

Battery Types Tested	Compact storage batteries, Alkaline, Nickel-Metal Hydride (NiMH), Nickel-Cadmium (NiCd), Lithium-ion (Li-ion) and lead-acid batteries
Battery Capacity	0 to 500AH
Impedance Measurement Range	40mΩ, 400mΩ, 4Ω, 40Ω
Resolution	10μΩ, 100μΩ, 1mΩ, 10mΩ
Accuracy	±(1%reading ±10digits)
Open Circuit Voltage	3.5Vpp max
Measurement Current	25mA approx., 2.5mA approx., 250μA approx., 25μA approx
Measuring current Frequency	1KHz ±10%
Voltage Measurement Range	4V, 40V
Data Memory	500 data sets

Click here for complete specifications on the Amprobe BAT-500

What's included with the Amprobe BAT-500

Battery Capacity Tester
Test Probe
RS232 Cable
Software
Instruction manual
Batteries

datasheet for the Amprobe BAT-500 Battery Capacity Tester manual for the Amprobe BAT-500 Battery Capacity Tester

Ask a question about Amprobe BAT-500 Battery Capacity Tester

Customer Reviews for the Amprobe BAT-500

Description ➕➖

Amprobe BAT-500 Offers

Features

Tests battery capacity to calculate its true life
Works with most batteries, compact storage batteries, alkaline and lead-acid up to 500Ah
Resistance measurement up to 40 ohms, and voltage up to 40V
Tests are performed without shutting down a battery
Simultaneously measure battery resistance and voltage
Comparator function to quickly access conditions as Pass,Warning, or Fail
99 memory locations to store results with read function
Compact and lightweight
RS232 PC Interface to download testing results to a PC for trending/life cycle analysis

Applications

Power Back-Up
UPS Systems

Specifications ➕➖

Amprobe BAT-500 Specifications

Battery Types Tested	Compact storage batteries, Alkaline, Nickel-Metal Hydride (NiMH), Nickel-Cadmium (NiCd), Lithium-ion (Li-ion) and lead-acid batteries
Battery Capacity	0 to 500AH
Impedance Measurement Range	40mΩ, 400mΩ, 4Ω, 40Ω
Resolution	10μΩ, 100μΩ, 1mΩ, 10mΩ
Accuracy	±(1%reading ±10digits)
Open Circuit Voltage	3.5Vpp max
Measurement Current	25mA approx., 2.5mA approx., 250μA approx., 25μA approx
Measuring current Frequency	1KHz ±10%
Voltage Measurement Range	4V, 40V
Data Memory	500 data sets
