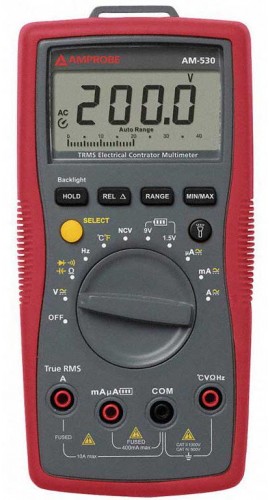

Amprobe AM-530 True-rms Electrical Contractor Multimeter

Model: AM-530 | UPC: 095969600392

Be the first to review this product

Amprobe AM-530 True-rms Electrical Contractor Multimeter-

Downloads: datasheet manual

More Amprobe Products

Ask an Expert

Amprobe AM-530 True-rms Electrical Contractor Multimeter

Model: AM-530 | UPC: 095969600392

Be the first to review this product

Measure and verify the presence of voltage to connect equipment or perform repairs, run new wiring, check continuity of electrical connections, identify blown fuses, troubleshoot motors, or check transformers which makes it the ideal tool for electrical contractors. Additionally, this multimeter features True RMS sensing.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Fluke 117 Electrician's Multimeter with non-contact voltage

Model: 117 | Order No: 117/EFSP

Performs non-contact voltage detection and helps prevent false readings caused by ghost voltage with integrated VoltAlert technology, AutoVolts, and LoZ functions. Additionally, this multimeter is ideal for electricians and used for applications such as commercial buildings, hospitals, and schools.

Learn More

Amprobe AM-530 Offers

Measure and verify presence of voltage in order to connect equipment or to perform repairs, run new wiring, check continuity of electrical connections, identify blown fuses, troubleshoot motors or check transformers. The AM-530 is True-RMS sensing to accurately measure voltage on systems affected by harmonics as well as a built-in flashlight to detect wire colors in the dark, a "third hand" probe holder and VolTect™ non-contact voltage detection.

Features

Voltage up to 750V ac and 1000V dc, ac/dc current, resistance, frequency, capacitance, and temperature.
True-RMS
VolTect™ Non-contact voltage detection
Audible continuity
Diode test
Data hold
Max/min memory
Relative zero mode
Built-in flashlight and back lit LCD display with analog bar graph
Built-in test leads storage and "third hand" test lead holder
Auto and manual ranging
Auto power off
Low battery warning
CAT III 600V, CAT II 1000V

Amprobe AM-530 Specifications

AC Voltage	400 mV 4.000 V 40.00 V 400.0 V 600 V
DC Voltage	400 mV 4.000 V 40.00 V 400.0 V 600 V
AC Current	400.0 μA 4000 μA 40.00 mA 400.0 mA 4.000 A 10.00 A
DC Current	400.0 μA 4000 μA 40.00 mA 400.0 mA 4.000 A 10.00 A
Frequency	10 Hz to 10 MHz
Resistance	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ
Capacitance	40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 4000 μF
Temperature	-40 to 1832°F (-40 to 1000°C)
Number of Temperature Inputs	Single Thermocouple

Click here for complete specifications on the Amprobe AM-530

What's included with the Amprobe AM-530

Multimeter
9 V (6F22) Battery Installed
Test Leads
Type-K Probe
Velcro Strap Carrying Case
Users Manual

datasheet for the Amprobe AM-530 True-rms Electrical Contractor Multimeter manual for the Amprobe AM-530 True-rms Electrical Contractor Multimeter

Ask a question about Amprobe AM-530 True-rms Electrical Contractor Multimeter

Customer Reviews for the Amprobe AM-530

Description ➕➖

Amprobe AM-530 Offers

Features

Voltage up to 750V ac and 1000V dc, ac/dc current, resistance, frequency, capacitance, and temperature.
True-RMS
VolTect™ Non-contact voltage detection
Audible continuity
Diode test
Data hold
Max/min memory
Relative zero mode
Built-in flashlight and back lit LCD display with analog bar graph
Built-in test leads storage and "third hand" test lead holder
Auto and manual ranging
Auto power off
Low battery warning
CAT III 600V, CAT II 1000V

Specifications ➕➖

Amprobe AM-530 Specifications

AC Voltage	400 mV 4.000 V 40.00 V 400.0 V 600 V
DC Voltage	400 mV 4.000 V 40.00 V 400.0 V 600 V
AC Current	400.0 μA 4000 μA 40.00 mA 400.0 mA 4.000 A 10.00 A
DC Current	400.0 μA 4000 μA 40.00 mA 400.0 mA 4.000 A 10.00 A
Frequency	10 Hz to 10 MHz
Resistance	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ
Capacitance	40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 4000 μF
Temperature	-40 to 1832°F (-40 to 1000°C)
Number of Temperature Inputs	Single Thermocouple
