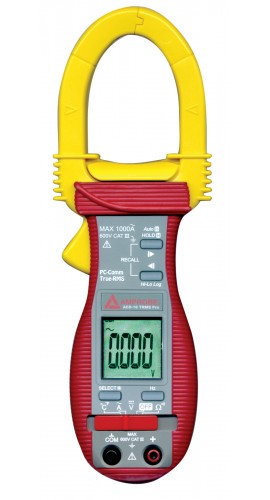

This provides a full range of measurements, enhanced with data logging capabilities, to catch what the eye can’t see. Double the efficiency, with an optional PC interface kit. True RMS for a more accurate signal in a noisy electrical environment.
This provides a full range of measurements, enhanced with data logging capabilities, to catch what the eye can’t see. Double the efficiency, with an optional PC interface kit. True RMS for a more accurate signal in a noisy electrical environment.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
Features
| Display | 3-5/6 digits, 6000 counts LCD display |
| Update | 5 per second nominal |
| Relative Humidity | Maximum relative humidity 80% for temperature up to 31°C decreasing linearly to 50% relative humidity at 40°C |
| Altitude: | Operating below 2000m |
| Temperature Coefficient | Nominal 0.15 x (specified accuracy)/ oC @ (0°C -18°C or 28°C -40°C), or otherwise specified |
| Sensing | True RMS sensing |
| Transient protection | 6.5kV (1.2/50μs surge) |
| Pollution degree | 2 |
| Special features | Display Backlight; Auto-Hold; Display Hold; On screen stand alone Hi-Lo logging (5400 minutes) at sampling speed of faster than: 20 per second for Voltage & ACA functions 4 per second for Ohm & Temperature functions 2 per second for Hz function |
| Jaw opening & Conductor diameter | 45mm max |
| Dimension | L224mm X W78mm X H40mm |
| Weight | 224 gm approx |
| Display | 3-5/6 digits, 6000 counts LCD display |
| Update | 5 per second nominal |
| Relative Humidity | Maximum relative humidity 80% for temperature up to 31°C decreasing linearly to 50% relative humidity at 40°C |
| Altitude: | Operating below 2000m |
| Temperature Coefficient | Nominal 0.15 x (specified accuracy)/ oC @ (0°C -18°C or 28°C -40°C), or otherwise specified |
| Sensing | True RMS sensing |
| Transient protection | 6.5kV (1.2/50μs surge) |
| Pollution degree | 2 |
| Special features | Display Backlight; Auto-Hold; Display Hold; On screen stand alone Hi-Lo logging (5400 minutes) at sampling speed of faster than: 20 per second for Voltage & ACA functions 4 per second for Ohm & Temperature functions 2 per second for Hz function |
| Jaw opening & Conductor diameter | 45mm max |
| Dimension | L224mm X W78mm X H40mm |
| Weight | 224 gm approx |
