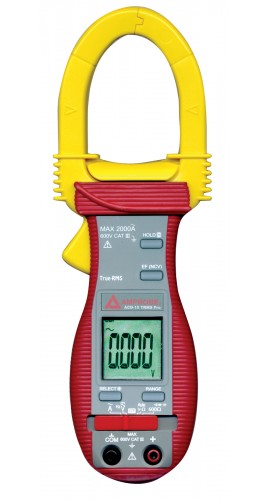

Amprobe ACD-15-PRO-TRMS 2000A Digital Clamp-on Multimeter TRMS

Model: ACD-15-PRO-TRMS | UPC: 095969365796

Be the first to review this product

Amprobe ACD-15-PRO-TRMS 2000A Digital Clamp-on Multimeter TRMS-

Downloads: datasheet manual

More Amprobe Products

Ask an Expert

Amprobe ACD-15-PRO-TRMS 2000A Digital Clamp-on Multimeter TRMS

Model: ACD-15-PRO-TRMS | UPC: 095969365796

Be the first to review this product

Wide range of measuring features built into one, professional meter. The TRMS version with backlight display, improves performance and reliability.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Amprobe AMP-330 1000A AC/DC TRMS Motor Maintenance Clamp Meter

Model: AMP-330

1000A AC/DC True-RMS Clamp Multimeter. Offers a complete range of functions for electrical and industrial environments. Includes motor testing features.

Learn More

Amprobe ACD-15-PRO-TRMS Offers

Features

TRMS & Backlight Screen
Non-contact Voltage Level Detection
Diode Test
Audible continuity
Auto-check feature automatically selects DCV, ACV or Resistance
Auto and manual ranging
Auto power off
Low battery indication
Data hold
Large, easy to read LCD display
Accommodates conductors up to 1.77” (45mm) in diameter
Voltage overload protection for all functions up to 600V AC/DC
Measurements: AC/DC Voltage up to 600V, AC Current up to 2000A, Resistance, Frequency and Capacitance

Amprobe ACD-15-PRO-TRMS Specifications

DC Voltage
Range	6.000V 60.00V 600.0V
Accuracy	0.5% + 3d 1.0% + 5d 2.0% + 5d
NMRR	>30dB @ 50/60Hz
CMRR	>100dB @ DC, 50/60Hz, Rs=1kW
AutoCheck™ DCV Threshold	> +1.5VDC or < -1.0VDC nominal
Diode Tester
Open Circuit Voltage	Test Current
< 1.6 VDC	0.4mA (typical)
Audible Threshold	between 0.015V & 0.080V

Click here for complete specifications on the Amprobe ACD-15-PRO-TRMS

What's included with the Amprobe ACD-15-PRO-TRMS

Clamp-on Multimeter
Test Leads
Carrying Case
Batteries (Installed)
User Manual
