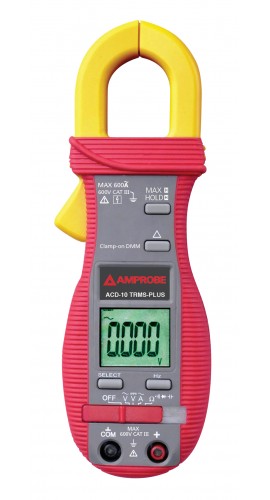

Offers thinner jaws over standard clamp meters. Allowing access to tight measurement areas and still accommodating conductors up to 25 mm. It also measures Capaci-tance and Frequency. Frequency is measured by either jaws or test leads.
Offers thinner jaws over standard clamp meters. Allowing access to tight measurement areas and still accommodating conductors up to 25 mm. It also measures Capaci-tance and Frequency. Frequency is measured by either jaws or test leads.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
Features
| Display | 3-3/4 digits 4000 counts LCD display |
| Update Rate | 3 per second nominal |
| Operating Temperature | 0°C to 40°C; < 80% RH for temperature up to 31°C decreasing linearly to 50% RH at 40°C |
| Altitude | Operating below 2000m; Indoor use |
| Temperature Coefficient | Nominal 0.15 x (specified accuracy)/ °C @ (0°C ~ 18°C or 28°C ~ 40°C) |
| APO Timing | Idle for 30 minutes |
| APO Consumption | 5 μA typical |
| Jaw opening & Conductor diameter | max 26 mm |
| Special Features | 30ms Max Hold; Data Hold; Relative Zero mode |
| Power Supply | 3V coin battery IEC-CR2032 |
| Dimension | 7.4 x 2.5 x 1.3" (190 x 63 x 32 mm) |
| Weight | 139 gm approx |
| Display | 3-3/4 digits 4000 counts LCD display |
| Update Rate | 3 per second nominal |
| Operating Temperature | 0°C to 40°C; < 80% RH for temperature up to 31°C decreasing linearly to 50% RH at 40°C |
| Altitude | Operating below 2000m; Indoor use |
| Temperature Coefficient | Nominal 0.15 x (specified accuracy)/ °C @ (0°C ~ 18°C or 28°C ~ 40°C) |
| APO Timing | Idle for 30 minutes |
| APO Consumption | 5 μA typical |
| Jaw opening & Conductor diameter | max 26 mm |
| Special Features | 30ms Max Hold; Data Hold; Relative Zero mode |
| Power Supply | 3V coin battery IEC-CR2032 |
| Dimension | 7.4 x 2.5 x 1.3" (190 x 63 x 32 mm) |
| Weight | 139 gm approx |
