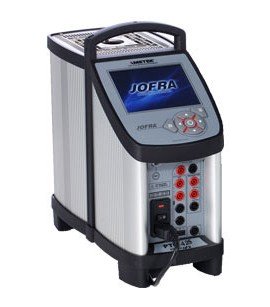

Lightweight and easy to carry, this professional dry-block temperature calibrator provides reliable and fast calibrations wherever high heat or low cooling is needed. Features a temperature range of 91 to 797°F (33 to 425°C), active dual-zone temperature control, and a large, easy-to-read color display.
Lightweight and easy to carry, this professional dry-block temperature calibrator provides reliable and fast calibrations wherever high heat or low cooling is needed. Features a temperature range of 91 to 797°F (33 to 425°C), active dual-zone temperature control, and a large, easy-to-read color display.
Versatile and easy to use, this professional dry-block temperature calibrator is durable and provides lasting quality.
Features
Applications
| Temperature | |
| Range at Ambient 73°F (23°C) | 91 to 797°F (33 to 425°C) |
| Stability | ±0.036°F (±0.02°C) |
| Radial Homogeneity (Difference Between Holes) | 0.036°F (0.02°C) |
| Settings | Resolution: 1, 0.1, or 0.01 Units: °C or °F or K |
| Heating Time | 91 to 797°F (33 to 425°C): 10 minutes |
| Cooling Time | 797 to 212°F (425 to 100°C): 25 minutes 212 to 122°F (100 to 50°C): 16 minutes |
| Time to Stability (Typical) | 10 minutes |
| General Specifications | |
| Mains Specifications | Voltage: 115 V (90 to 127)/230 V (180 to 254) Power consumption: 1150 VA maximum |
| Immersion Depth | 5.91" (150 mm) |
| Well Diameter | 1.02" (26 mm) |
| Temperature | Operating: 32 to 104°F (0 to 40°C) Storage: -4 to 122°F (-20 to 50°C) |
| Humidity | 0 to 90% |
| Protection Class | IP10 |
| Dimensions | 14.3 x 6.7 x 14.3" (362 x 171 x 363 mm) |
| Weight | 18.1 lbs (8.2 kg) |
| Temperature | |
| Range at Ambient 73°F (23°C) | 91 to 797°F (33 to 425°C) |
| Stability | ±0.036°F (±0.02°C) |
| Radial Homogeneity (Difference Between Holes) | 0.036°F (0.02°C) |
| Settings | Resolution: 1, 0.1, or 0.01 Units: °C or °F or K |
| Heating Time | 91 to 797°F (33 to 425°C): 10 minutes |
| Cooling Time | 797 to 212°F (425 to 100°C): 25 minutes 212 to 122°F (100 to 50°C): 16 minutes |
| Time to Stability (Typical) | 10 minutes |
| General Specifications | |
| Mains Specifications | Voltage: 115 V (90 to 127)/230 V (180 to 254) Power consumption: 1150 VA maximum |
| Immersion Depth | 5.91" (150 mm) |
| Well Diameter | 1.02" (26 mm) |
| Temperature | Operating: 32 to 104°F (0 to 40°C) Storage: -4 to 122°F (-20 to 50°C) |
| Humidity | 0 to 90% |
| Protection Class | IP10 |
| Dimensions | 14.3 x 6.7 x 14.3" (362 x 171 x 363 mm) |
| Weight | 18.1 lbs (8.2 kg) |
