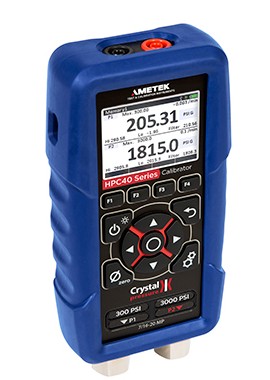

Combined pressure and mA loop measurements to be fully temperature compensated from -4 to 122°F (-20 to 50°C), this single pressure calibrator has a hydraulic screw pump with 0 to 5000 psi range and for use with water. Reliable accuracy in measuring pressure, current, voltage, or temperature.
Combined pressure and mA loop measurements to be fully temperature compensated from -4 to 122°F (-20 to 50°C), this single pressure calibrator has a hydraulic screw pump with 0 to 5000 psi range and for use with water. Reliable accuracy in measuring pressure, current, voltage, or temperature.
Used in a broad range of applications from simple tool type jobs to complex calibration jobs in custody transfer systems.
Features
Applications
| Pressure Range | 10,000 psi |
| Accuracy | 0 to 30% of range: ±(0.015% of full scale) 30 to 110% of range: ±(0.050% of reading) Vacuum : ±(0.05% of full scale) |
| Pressure Sensor | Wetted materials: (wrench tight) 316 stainless steel, (finger tight) 316 stainless steel, and Viton (internal o-ring) Diaphragm seal fluid: silicone oil Connection: crystal CPF female |
| Current and Voltage Measurement | Connection: 4 mm jacks Maximum voltage: 45 VDC Current (mA) input accuracy: ±(0.015% of rdg + 0.002 mA), mA range: 0 to 55 mA Current (mA) output accuracy: ±(0.015 of rdg + 0.002 mA), range: 0 to 25 mA Voltage (VDC) Input accuracy: ±(0.015 % of rdg + 2 mV), range: 0 to 30 VDC Loop power accuracy: ±(0.015% of rdg) + 0.02 Ω, Range: 0 to 400 Ω |
| Enclosure | Rating: IP65 Housing: machined aluminum Keypad and labels: UV resistant silicone |
| Display | 320 x 240 pixel graphical display |
| Temperature Range | -4 to 122°F (-20 to 50°C) |
| Power | Battery Life: >12 hours non-sourcing >8 hours when sourcing 12 mA |
| DWX Pump System | P-018-CPF hydraulic screw pump: 0 to 5000 psi, for use with water |
| Pressure Range | 10,000 psi |
| Accuracy | 0 to 30% of range: ±(0.015% of full scale) 30 to 110% of range: ±(0.050% of reading) Vacuum : ±(0.05% of full scale) |
| Pressure Sensor | Wetted materials: (wrench tight) 316 stainless steel, (finger tight) 316 stainless steel, and Viton (internal o-ring) Diaphragm seal fluid: silicone oil Connection: crystal CPF female |
| Current and Voltage Measurement | Connection: 4 mm jacks Maximum voltage: 45 VDC Current (mA) input accuracy: ±(0.015% of rdg + 0.002 mA), mA range: 0 to 55 mA Current (mA) output accuracy: ±(0.015 of rdg + 0.002 mA), range: 0 to 25 mA Voltage (VDC) Input accuracy: ±(0.015 % of rdg + 2 mV), range: 0 to 30 VDC Loop power accuracy: ±(0.015% of rdg) + 0.02 Ω, Range: 0 to 400 Ω |
| Enclosure | Rating: IP65 Housing: machined aluminum Keypad and labels: UV resistant silicone |
| Display | 320 x 240 pixel graphical display |
| Temperature Range | -4 to 122°F (-20 to 50°C) |
| Power | Battery Life: >12 hours non-sourcing >8 hours when sourcing 12 mA |
| DWX Pump System | P-018-CPF hydraulic screw pump: 0 to 5000 psi, for use with water |
