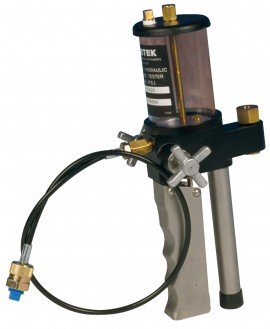

AMETEK M&G AM-T-620H Hydraulic Pressure Pump, 5000 psi

Model: AM-T-620H

Be the first to review this product

AMETEK M&G AM-T-620H Hydraulic Pressure Pump, 5000 psi-

Downloads: datasheet manual

More M&G Products

Ask an Expert

AMETEK M&G AM-T-620H Hydraulic Pressure Pump, 5000 psi

Model: AM-T-620H

Be the first to review this product

Hydraulic pressure pump features a transparent reservoir for easy viewing of the test fluid. Reference gauge is mounted on the body manifold with a swivel fitting for easy viewing.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

AMETEK M&G T-620H Base Hydraulic Pressure

Model: T-620H

Compatible with the T-600 series hydraulic hand pump, this base hydraulic pressure comes with a range of 0 to 5000 psi (350 bar).

Learn More

M&G AM-T-620H Offers

Features

Pump is compatible with petroleum-based oils or hydraulic fluids
Vernier adjustment allows for precise pressure control
Vent valve is provided for quick and positive shut-off and pressure release

M&G AM-T-620H Specifications

Pressure Range	5000 psi (0 to 350 bar)
Type	Hydraulic
Test Medium	Oil
Reservoir Capacity	200 cl (0.5 pint)
Operation	Pistol-grip
O Rings	Buna-N
Wetted Parts	Aluminum, brass, stainless steel, Lexan®
Test Connections	24" (0.6 m) hose with ¼" BSP and NPT female terminations
Dimensions	8.5 x 4.8 x 2.4" (21.6 x 12.1 x 6.2 cm)
Weight	3.0 lbs (1.4 kg)

Click here for complete specifications on the M&G AM-T-620H

What's included with the M&G AM-T-620H

Hydraulic Pressure Pump
24" (0.6 m) Rubber Hose with ¼" NPT Connector
¼" BSP Adapter

datasheet for the AMETEK M&G AM-T-620H Hydraulic Pressure Pump, 5000 psi manual for the AMETEK M&G AM-T-620H Hydraulic Pressure Pump, 5000 psi
