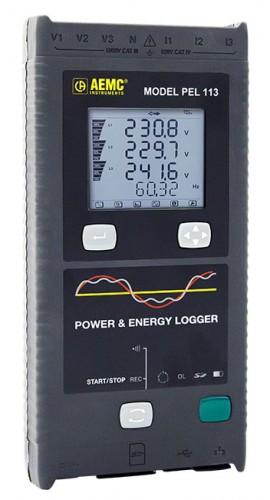

The PEL 113 is a cost-effective, easy-to-use power and energy data logger designed to simplify energy audits, system monitoring, and electrical upgrades. Delivering precise, real-time measurements for single-phase, split-phase, and three-phase electrical systems, it helps efficiency professionals, facility managers, and electrical engineers reduce costs, improve power quality, and optimize system performance.
The PEL 113 is a cost-effective, easy-to-use power and energy data logger designed to simplify energy audits, system monitoring, and electrical upgrades. Delivering precise, real-time measurements for single-phase, split-phase, and three-phase electrical systems, it helps efficiency professionals, facility managers, and electrical engineers reduce costs, improve power quality, and optimize system performance.
With its long-term recording capabilities, simple installation, multiple connectivity options, built-in alarms and reports, as well as advanced DataViewMD software, the PEL 113 provides accurate and actionable data for smarter energy management. Its compact, magnetic design allows for easy installation in most electrical panels, making it a high-performance solution for a wide range of applications.
Features
Applications
User-friendly design
Comprehensive electrical measurements
Advanced analysis functions
DataViewMD software
The DataViewMD software simplifies configuration, monitoring, and analysis:
Flexible network connectivity
| General Specifications | |
| Number of Voltage Inputs | 3 (V1, V2, V3) |
| Number of Current Inputs | 3 (L1, L2, L3) |
| Distribution Systems | Single-/Split-/3-phase, DC, etc. (17 choices) |
| Measurements | |
| Voltage Range - Phase-Neutral (V) | 10 to 1000 V AC/DC 2 |
| Voltage Range - Phase-Phase (U) | 10 to 1000 V AC 2 |
| Typical Accuracy - Voltage | ± 0.2% R ± 0.2 V |
| Current Range AC | 5 mA to 12 kAAC 3 |
| Current Range DC | 50 mA to 1300 ADC 3 |
| Typical Accuracy - Current -(Meter Only) 4 | ± 0.4 % R ± 0.04 % Inom |
| Network Frequencies | DC/50/60/400 Hz (VFD/PWM not available) |
| Calculated Measurements | |
| Voltage Ratios | Up to 650 kV |
| Current Ratios | Up to 25 kA (MN193 probe, 5 A range) |
| Power (P, P+ , Punb, Qf, N, D, S) | Up to 10 GW/Gvar/GVA 5 |
| Energy | Up to 4 EWh/EVAh/Evarh 5 |
| Phase | Cos φ, Tan Φ, PF |
| Phase Order / Phasor Diagram | Yes / Yes (with DataView® or App for Android) |
| Harmonics | THD for V, A and harmonics to 50th order for V, A |
| Recording | |
| Aggregations (Fixed) | 200 ms/1 s trends |
| Aggregations (Selectable) | 1 to 60 minutes (12 choices) |
| Min/Max Values | Yes |
| Alarms | Up to 32 separate alarms |
| Emailed Reports | Yes, Alarms and Periodical Min/Max data through DataViewSync® |
| Storage Media | SD Card (32 GB Max) |
| Recording Length | Several weeks to years (Configuration dependent) |
| Other Features | |
| Communication | USB, Ethernet/Wi-Fi LAN, Ethernet/Wi-Fi Direct, DataViewSync® |
| Software | DataView® included, free App for Android™ |
| NEC Article 220.87 - Load Study Compliant | Yes, DataView® configuration button and report templates |
| Mounting | Embedded magnets in case |
| Powered from Phase Voltage | Phase Power Adapter (Cat. #2137.90) |
| External Power Supply | 120 / 240 V Line Power Cord |
| Safety and Mechanical | |
| Electrical Safety | 600 V CAT IV / 1000 V CAT III |
| Ingress Protection | IP 54 / IP 20 |
| Weight | < 2.2 lbs (1 kg) |
