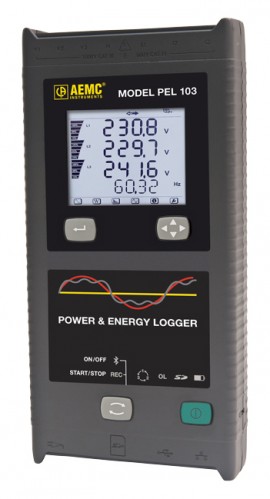

AEMC PEL 103 Power/Energy Data Logger Kit with LCD

Model: PEL 103 | Order No: 2137.52 | UPC: 685338220476

AEMC PEL 103 Power/Energy Data Logger Kit with LCD

Model: PEL 103 | Order No: 2137.52 | UPC: 685338220476

Single-, dual- (split-phase) and three-phase power/energy data logger easily measures, records, and analyzes vital energy data for 50Hz, 60Hz, 400Hz and DC distribution systems. USB, LAN, Ethernet and Bluetooth communications. Kit includes 3 MiniFlex® MA193-10-BK sensors.

Single-, dual- (split-phase) and three-phase power/energy data logger easily measures, records, and analyzes vital energy data for 50Hz, 60Hz, 400Hz and DC distribution systems. USB, LAN, Ethernet and Bluetooth communications. Kit includes 3 MiniFlex® MA193-10-BK sensors.

Sale Price $1895.25 USD
Regular Price $1995.00 USD
Availability 1 in Stock
Quantity

AEMC PEL 103 Offers

Featuring an LCD display, the AEMC PEL 103 2137.52 Logger is a low cost, simple to use, one, two (split phase) and three phase (Y, Δ) power/energy data logger.

This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential and overall energy audits. All vital energy data is easily measured, recorded, and analyzed. Reports can be generated with confidence with minimal configuration time and effort (Standard and Customizable Reports supplied).

The instrument’s design enables it to be installed inside a load center panel (including the current sensors) and still allow the door to close on most panels. The PEL 100 series offers all the essential functions for logging power/energy data from most electrical power networks in use today across the world (17 network set-ups provided). The PEL 100 series energy loggers measure and record three voltage inputs and current inputs, Watts, VARS, VA and Energy (kWh and kVA). Power Factor (PF), Displacement Power Factor (DPF), Crest Factor, Frequency and THD are calculated and recorded as well. Individual harmonic % information from 1 to the 50th harmonic are recorded at the operator’s choice. All variables are recorded and stored at a one second interval and on user selectable demand intervals from 1 to 60 minutes.

Energy costs can be calculated and displayed quickly and easily by simply inputting the unit cost for a kilowatt hour into the software. Data is stored on a removable SD card. Data can be retrieved using a USB, Bluetooth and/or Ethernet (local or internet) connection by transporting the SD card back to a PC. The comprehensive DataView®software (included) provides the ability to view data from several hundred PEL 100 series instruments on a local network or over the internet allowing the user to evaluate energy usage in a department or facility basis, a remote site, or even in a city, anywhere in the world. DataView®allows measurements to be viewed in real-time on a PC and stored data to be downloaded for analysis and report generation.

Features

  • Measurement of RMS voltages and currents at 128 times per cycle and stored every second
  • Measurement of VA, W and var power values (total and per phase) stored every second
  • Measurement of VAh, Wh and varh energy values (total and per phase) per second with source/load indication
  • Calculation of the cos φ Displacement Power Factor (DPF) and the Power Factor (PF) stored every second
  • Calculation of Total Harmonic Distortion (THD)
  • Measurement, calculation and display of the harmonics up to the 50th order for 50/60 Hz and 7th order for 400Hz
  • Measurement of the DC quantities (RMS calculation)
  • Display Measurements
  • Electrical network quantities are stored on a removable SD-Card
  • Automatic recognition of the connected current sensors
  • DataView software for configuration, data retrieval and real-time viewing of measurements with a PC
  • Compact and rugged case
  • Versatile communication interface choices built in (USB, Ethernet, Bluetooth)

Applications

  • Measure efficiency, find areas for potential savings
  • Track Sub-billing occupants for energy costs
  • Assign energy costs to departments or operations within a department
  • Track peak demand periods and find opportunities for surcharge reductions
  • Determine present capacity and circumvent unnecessary electrical expansion costs
  • Verify the reliability and operation of electrical machinery
  • Improve response time to solve power related problems
  • Track energy availability and reliability of supply
  • Reduce field service time at sub-stations

AEMC PEL 103 Specifications

General
Sampling Frequency 128 samples per cycle; 50/60Hz (16 samples/cycle 400Hz)
Data Storage Rate 1 per second
Demand Period Storage Rate User selectable (1, 2, 3, 4, 5, 6, 10, 12, 15, 20, 30 and 60 minutes)
Recorded Parameters (Single- and Poly-Phase) V, I, W, VA, var, PF, Tan, Wh, Vah, varh, THD (V and I)
Individual harmonics (from 1 through 50 per phase); Crest Factor (CF), Cos f / DPF
Event Log Tracks and records status changes and error messages along with recorded data
Front Panel Indicator LEDs Bluetooth active, recording in progress, phase connection reversal, overload, battery charging and SD Card status
Storage Capacity 2GB SD card (included) is used for storage. SD cards (up to 2GB); SDHC cards (4 to 32GB) formatted FAT32 are supported
Inputs Voltage: 3 voltage input channels via 4mm safety banana jacks
Current: 3 current input channels via custom 4 pin jacks that accept AEMC® probes and sensors
Mechanical
Communication Ports USB 2.0, Ethernet (RJ45), Wireless Bluetooth Class
Dimension/Weight 10.08 x 4.92 x 1.46" (256 x 125 x 37mm) / <1kg
Case / Index of Protection Double insulated, rubber over-molded, polycarbonate UL94 V1 rated / IP54 non operating
Mounting / Security Embedded magnets on back side, keyhole slot on back side / Kensington anti-theft system
Safety Rating / CE Rating Complies with IEC 61010-1:Ed3, and IEC 61010-2-030:Ed1 for 1000V CAT III / 600V CAT IV, Pollution Degree 2 / Yes
Click here for complete specifications on the AEMC PEL 103

What's included with the AEMC PEL 103

  • Power & Energy Logger Model PEL 102
  • 4 x Black Test Leads and Alligator Clips
  • 12 x Color-coded ID Markers
  • 3 x MA193-10-BK MiniFlex®
  • Small Classic Tool Bag
  • Multifix (mounting system)
  • USB SD-Card Adapter
  • Power Cord, 5 ft 115V
  • 5 ft USB Cable
  • 2 GB SD-Card
  • 4 GB USB Stick with DataView® Software
