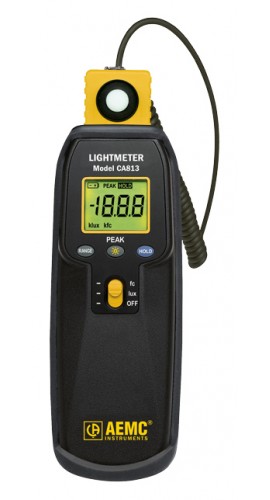

AEMC CA813 Light Meter, 20 to 200000 Lux

Model: CA813 | Order No: 2121.21 | UPC: 685338180022

AEMC CA813 Light Meter, 20 to 200000 Lux

Model: CA813 | Order No: 2121.21 | UPC: 685338180022

Portable, easy-to-use instrument which features optical sensors that are designed to match the response of the human eye, making them ideal instruments for workspace analysis and planning. Includes PEAK function.

Portable, easy-to-use instrument which features optical sensors that are designed to match the response of the human eye, making them ideal instruments for workspace analysis and planning. Includes PEAK function.

Sale Price $174.80 USD
Regular Price $184.00 USD
Availability 1 to 2 Weeks
Quantity

Add In-House Traceable Calibration to your CA813

Add In-House Traceable Calibration to your CA813


AEMC CA813 Offers

The ergonomically designed case, large display and intuitive function selection make this instrument the right choice for any application.

This light meter is designed for simple one-hand operation. It provides selectable lux or footcandle units for display and features a 3 1/2 digit backlit LCD and HOLD function. The Model CA813 offers a PEAK function.

Features

  • Easy one-hand operation
  • Designed to measure a wide range of lighting types
  • Removable sensor for remote reading
  • Measures in footcandles (fc) or lux
  • Cosine corrected
  • HOLD function
  • PEAK function
  • 2000-count backlit LCD
  • CIE photoptic (human eye) response
  • Lightweight and compact
  • Removable protective sensor cover

Applications

  • Testing for OSHA compliance in workplace, cleanroom and industrial settings
  • Ambient testing for light-sensitive displays and archives in museums and art galleries

AEMC CA813 Specifications

Range 20 lux, 200 lux, 2000 lux, 20k lux, 200k lux
20 fc, 200 fc, 2000 fc, 20k fc
Display Resolution 0.01 lux, 0.01 fc
Sensor Silicon photodiode
Spectral Response CIE Photoptic Curve
Accuracy for 2856K Light Source ±5% of Reading ±10 cts
Display Refresh Rate 2.5 times per second, nominal
Display 3-1/2 digit LCD, 2000 count
Polarity Automatic
Low Battery Indication Displayed when battery voltage is low
Dimensions 6.81 x 2.38 x 1.5" (173 x 60.5 x 38 mm)
Weight Approximately 7.9 oz (224 g) including battery
Click here for complete specifications on the AEMC CA813

What's included with the AEMC CA813

  • CA813 Light Meter
  • 9V Alkaline Battery
  • Manual
  • Rugged, Shockproof, and Protective Holster

AEMC: The Effects of Poor Quality Lighting and Corrective Measures


This video will explain the effects or poor quality lighting and the corrective measures to take against it. Additionally, to help measure and monitor the lighting in offices, users can use lightmeters.
