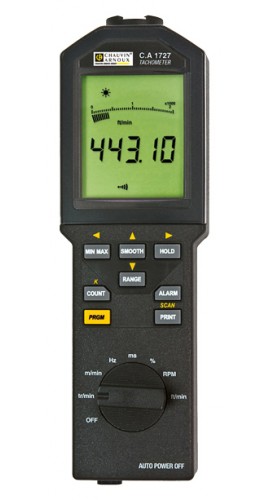

AEMC CA1727 Contact/Non-Contact Tachometer and Data Logger

Model: CA1727 | Order No: 1748.30 | UPC: 685338180213

AEMC CA1727 Contact/Non-Contact Tachometer and Data Logger

Model: CA1727 | Order No: 1748.30 | UPC: 685338180213

This instrument is simple to use and offers numerous measurement possibilities with or without contact. Measurement by photo-reflection for no-contact measurement: a reflective strip is positioned on the part to be tested.

This instrument is simple to use and offers numerous measurement possibilities with or without contact. Measurement by photo-reflection for no-contact measurement: a reflective strip is positioned on the part to be tested.

Sale Price $598.50 USD
Regular Price $630.00 USD
Availability 5 Days
Quantity

Add In-House Traceable Calibration to your CA1727

Add In-House Traceable Calibration to your CA1727


AEMC CA1727 Offers

The optical sensor helps to prevent external disturbances and the active, modulated infrared beam guarantees correct measurements.

For traditional measurement with contact, a mechanical adapter (cylinder, cone or calibrated wheel) converts the rotation speed into pulses which are then measured by the tachometer.

Features

  • Measurements up to 100,000 rpm
  • Multiple of functions and automatic routines for data acquisition and storage: measurement of rotational speed, linear speed, count, frequency and period
  • Extensive programming possibilities
  • Digital display with analog bargraph
  • USB interface for processing results on a PC
  • Includes TachoGraph software on CD-Rom
  • Stores up to 4000 measurements results

Applications

  • Measure rotation speed with or without contact

AEMC CA1727 Specifications

Rotational Speed Function
Range 6 to 100,000 rpm
Resolution 0.0006 to 6 rpm depending on range
Accuracy ± 1x10-4 of Reading ± 6 counts
Linear Speed Function
Range 0.1 to 10,000 m/min or ft/min
Resolution 0.0006 to 6 m/min depending on range
Accuracy ± 1x10-4 of Reading ± 1 increment
Frequency Function
Range 0.1 to 10,000 Hz
Resolution 0.0004 to 0.4 Hz depending on range
Accuracy ± 4x10-5 of Reading ± 4 counts
Period Function
Range 0.1 to 10,000 ms
Resolution 0.0003 to 0.3 ms depending on range
Accuracy ± 1x10-4 of Reading ± 5 counts
Duty Cycle Function
Range 10 to 10,000%
Resolution 0.1 to 1% depending on range
Accuracy ± 0.1% of scale from 0.2 to 50 Hz
± 0.2% of scale from 50 to 125 Hz
1% of scale otherwise
Click here for complete specifications on the AEMC CA1727

What's included with the AEMC CA1727

  • Contact/Non-Contact Tachometer and Data Logger
  • FRB F Connector
  • 9V Battery
  • Set of 15 Reflective Strips
  • USB Cable
  • TachoGraph Software on CD-ROM
  • Quick Start Guide
  • Manual
  • Hard Case

Click on a category to view a selection of compatible accessories with the AEMC CA1727 Contact/Non-Contact Tachometer and Data Logger.

AEMC 1749.02 Mechanical Accessory Kit for the CA25, CA27, CA1725, & CA1727 1749.02
Mechanical Accessory Kit for Models CA25, CA27, CA1725 & CA1727.




AEMC 5000.23 Reflective Adhesive Tape for the CA25, CA27, CA1725 & CA1727 5000.23
For use with the AEMC CA1728, CA1725, CA27, and CA25 Tachometers.
