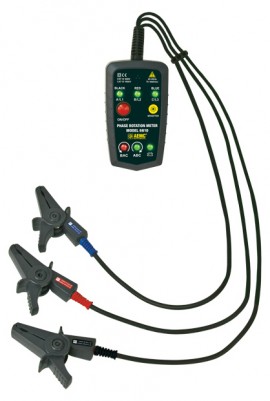

AEMC 6610 Non-Contact Phase Rotation Meter, 45 to 65Hz

Model: 6610 | Order No: 2121.12 | UPC: 685338160079

AEMC 6610 Non-Contact Phase Rotation Meter, 45 to 65Hz

Model: 6610 | Order No: 2121.12 | UPC: 685338160079

Provides greater safety from potential electric shock with its non-metallic contact voltage sensor clips.

Provides greater safety from potential electric shock with its non-metallic contact voltage sensor clips.

Sale Price $170.05 USD
Regular Price $179.00 USD
Availability 5 Days
Quantity

Add In-House Traceable Calibration Add In House NIST Traceable Calibration to your 6610

Add In-House Traceable Calibration Add In House NIST Traceable Calibration to your 6610


AEMC 6610 Offers

The Phase Rotation Meter Model 6610 is an essential tool for any installation, inspection and maintenance facility. The Model 6610 is a non-contact (no metal contact points) phase meter designed to identify phase rotation on 3-phase systems and identify live and open/de-energized phases. The phase order is determined as soon as the leads are connected. The presence of live wires and phase sequence are provided by LED indication and buzzer as soon as detection has occurred. The Model 6610 is ideal for installing rotating machinery or motors, and for checking generator phase rotation direction.

Features

  • No direct electrical contact (no metal contact points)
  • Operating voltage: 75 to 1000V AC
  • Frequency range: 45 to 65Hz
  • Phase rotation LED indicators (ABC or BAC)
  • Bright LED indication Live or Open Phase (A, B, C)
  • Includes three attached color-coded test leads with non-metallic alligator sensor clips for easy connection to the device under test
  • Low battery indicator
  • Back cover includes a magnet feature that can mount the instrument onto any metal cabinet panel for easy measurement
  • EN61010-1; 1000V CAT III; 600V CAT IV

Applications

  • Verify incorrect phase wiring
  • Detect open or de-energized phases
  • Determine correct wiring for proper rotation on motors, pumps, etc.

AEMC 6610 Specifications

Electrical
Measurement Principle Static induction
Frequency Range 45 to 65Hz
Auto-Off 5 min. after power on without detection
Low Battery Warning Power LED flashes at ≤ 7V ± 0.2V
Power Supply 1 x 9V alkaline battery
Mechanical
Cable Length Approx. 2.5 ft (800mm)
Dimensions 5.0 x 2.8 x 1.8" (128 x 72 x 46mm)
Weight 0.82 lbs (375g) including battery
Environmental
Operating Temperature & Humidity 14 to 122°F (-10 to 50°C) Max. 80% R.H.
Storage Temperature & Humidity -4 to 140°F (-20 to 60°C) Max. 80% R.H.
Safety Ratings EN 61010-1, 1000V CAT III / 600V CAT IV, EN 61326-1
Click here for complete specifications on the AEMC 6610

What's included with the AEMC 6610

  • 6610 Non-Contact Phase Rotation Meter
  • Attached black, red, and blue test leads with large alligator clips
  • Soft carrying case
  • 9V battery
  • Manual

Click on a category to view a selection of compatible accessories with the AEMC 6610 Non-Contact Phase Rotation Meter, 45 to 65Hz.

AEMC 5000.41 Soft Carrying Case for the AEMC 6610 5000.41
Replacement Carrying Case for the AEMC 6610 Non-Contact Phase Rotation Meter




AEMC 2121.55 Replacement Leads with Clips for the 6608/6609, Set of 3, Colour Coded 2121.55
Set or 3 replacement leads, color-coded (1000V CAT III 10A) with clips. For use with the AEMC 6608 & 6609.
