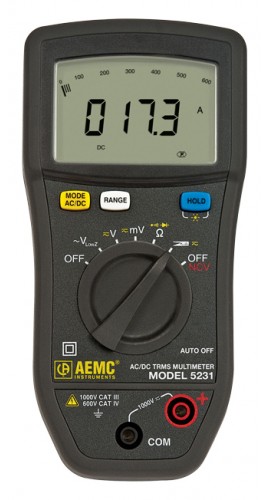

AEMC 5231 True RMS Multimeter with Non-Contact Voltage Detection

Model: 5231 | Order No: 2125.64 | UPC: 685338170184

AEMC 5231 True RMS Multimeter with Non-Contact Voltage Detection

Model: 5231 | Order No: 2125.64 | UPC: 685338170184

Rugged, economical True RMS digital multimeter with a non-electrical contact testing (NCV) function for detecting live electrical circuits. This multimeter is designed for safety: IEC61010 600V CAT IV, 1000V CAT III. Measures True RMS, V, AC/DC, OHM, CT, and Non-Contact Voltage.

Rugged, economical True RMS digital multimeter with a non-electrical contact testing (NCV) function for detecting live electrical circuits. This multimeter is designed for safety: IEC61010 600V CAT IV, 1000V CAT III. Measures True RMS, V, AC/DC, OHM, CT, and Non-Contact Voltage.

Sale Price $84.55 USD
Regular Price $89.00 USD
Availability 1 Week
Quantity

Add In-House Traceable Calibration to your 5231

Add In-House Traceable Calibration to your 5231


AEMC 5231 Offers

The Multimeter Model 5231 provides a Volt, Ohm, Continuity, Diode function, as well as an AC voltmeter function with low input impedance that is capable of finding ghost voltages by adding a burden to the circuit. It performs AC/DC direct reading current measurements up to 600A with a current clamp accessory plugged in.

The rotary function switch provides two OFF positions (OFF and OFF NCV). While in the OFF NCV position, the display will turn red if placed close to a live cable, providing a safe and easy way to detect hot wires. This meter has a high sensitivity with a resolution of 0.01mV and can withstand overloads up to 8000V.

The Model 5231 is ideal for electrical installers, electricians and heating or air-conditioning specialists.

Features

  • Non-electrical contact detection of network voltage (NCV Function)
  • High sensitivity with a resolution of 0.01mV
  • AC voltmeter with low input impedance (voltage measurements for electricity and electrical engineering)
  • AC/DC voltmeter with high input impedance (voltage measurements for electronics)
  • Ohmmeter, Continuity test with buzzer and Diode test functions
  • Ammeter (measurement using current clamp-on current probes)
  • Withstands overloads up to 8000V
  • VLowZ function detects the presence of ghost voltage by placing a burden on the circuit
  • Multi-position mounting for a hands-free work environment
  • Recommended current probes - AEMC Models MN03, MN251 & SR651
  • IEC/EN 61010-1, 1000V CAT III, 600V CAT IV

Applications

  • General purpose testing
  • Detect loose electrical wiring
  • Detect live circuits

AEMC 5231 Specifications

Acquisition True RMS
Autorange or Manual Yes
Bandwidth 3kHz (V) / 1kHz (A)
Best Accuracy 0.2%
AC Voltage 6 ranges / 60mV to 1000V
Resolution: 0.01mV
AC LowZ Voltage 4 ranges / 60mV to 1000V
Resolution: 0.01mV
DC Voltage 6 ranges / 600V to 1000V
Resolution: 0.01mV
AC Current / DC Current With 1mV/A clamp: 1 range - 600A
Resolution: 0.1A
Resistance Measurement 6 ranges - 60MΩ
Resolution: 0.1Ω

What's included with the AEMC 5231

  • True RMS Multimeter
  • 2 x 5ft red and black leads with needle tip, 1000V CAT IV 15A
  • Soft carrying case
  • Manual

Click on a category to view a selection of compatible accessories with the AEMC 5231 True RMS Multimeter with Non-Contact Voltage Detection.

AEMC 2154.74 Leads with Safety Needle Tips, Colour Coded, Set of 2, 5ft 2154.74
Color-coded 5ft lead with safety needle tips (2mm), 1000V CAT IV, 15A. For use with the AEMC 501, 503, 511-514, 565, 5231, 5233, CM605, 670, 675 & F07.




AEMC 5000.44 MultiFix Mounting System 5000.44
Universal Mounting System, for use with the AEMC 5212, 5215, 5217, 5231, & 5233. Replacement for PEL 102 & PEL 103.
