Built into a rugged mechanical case and is designed using quality polycarbonate materials. Measures AC/DC, True RMS, 1000A AC/DC, 750V AC/1000V DC, Ohms, Continuity.
Built into a rugged mechanical case and is designed using quality polycarbonate materials. Measures AC/DC, True RMS, 1000A AC/DC, 750V AC/1000V DC, Ohms, Continuity.

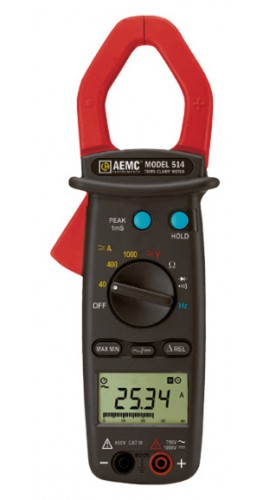

The AEMC 514 Clamp Meter is a general purpose professional clamp-on meter that measures up to the toughest standards. This meter offers a complete set of measurement ranges and is in compliance with international safety and quality standards to ensure a professional and reliable measuring tool. The AEMC 514 is auto-ranging and provides the best measurement range and resolution for troubleshooting. It has a high resolution 40A range.
AEMC 514 measures AC Amps, AC Volts, DC Volts, Ohms, Continuity (with beeper), Frequency (from V or A) and has a Diode Test function. It also uses Hall sensor technology that provides both DC and AC current measurements to 1000A.
The AEMC 514 is sized for a comfortable, one-handed operation. This model is TRMS and designed for today's non-linear loads. The jaw opening for the Model 514 is 1.575" (40mm).
Features
Applications
| AC Current | |
| Range | 0.05A to 1000A |
| Resolution | 40A: 0.01A 400A: 0.1A 1000A: 1A |
| Basic Accuracy | 50 to 60Hz: ±1.9% of Reading + 5cts 60 to 500Hz: ±2.5% of Reading + 5cts |
| Frequency Range | 50 to 500Hz |
| Overload Protection | 40A: 1200Arms 400A: 1200Arms 1000A: 1200Arms |
| DC Amperes | |
| Range | 1A to 1000A |
| Resolution | 40A: 0.01A 400A: 0.1A 1000A: 1A |
| Accuracy | ±2.5% of Reading + 10cts |
| Overload Protection | 1200Arms |
| AC Volts | |
| Input Range | 0.5V to 750V |
| Range | 400V / 750V |
| Resolution | 0.1V / 1V |
| Accuracy | ±1.5% of Reading + 5cts |
| Input Impedance | 10MW |
| Overload Protection | 1000Vrms |
| Frequency Current Input | |
| Range | 4kHz |
| Resolution | 1Hz |
| Minimum Input Signal | 2Arms |
| Accuracy | ±0.1% of Reading + 1ct |
| Frequency Voltage Input | |
| Range | 10kHz |
| Resolution | 10Hz |
| Minimum Input Signal | 5Vrms |
| Accuracy | ±0.1% of Reading + 1ct |
| DC Volts | |
| Range | 0.2 to 1000V |
| Resolution | 400V: 0.1V 1000V: 1V |
| Accuracy | ±1% of Reading + 2cts |
| Input Impedance | 10MW |
| Overload Protection | 1200Vrms |
| Continuity | |
| Range | Beeper |
| Measurement | <40W |
| Max. Test Voltage | 3VDC |
| Overload Protection | 600Vrms |
| General Specifications | |
| Jaw Opening Size | 1.575" (40mm) |
| Battery | 9V, NEDA 1604 or 6F22 or 006P |
| Dimensions | 9.53 x 2.60 x 1.42" (242 x 66 x 36mm) |
| Weight | 14.10oz (400g) with batteries |
Click on a category to view a selection of compatible accessories with the AEMC 514 AC/DC True RMS Digital Clamp Meter with Hz, 1000A AC/DC, 750V AC/1000V DC.
