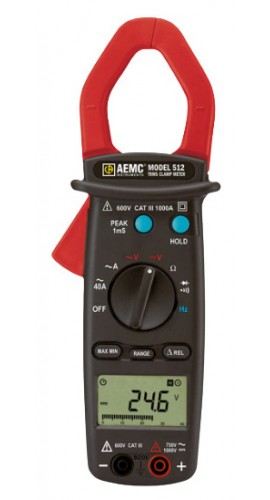

AEMC 512 True RMS Clamp Meter with Hz, 1000A AC, 750V AC/1000V DC

Model: 512 | Order No: 2117.68 | UPC: 685338110050

AEMC 512 True RMS Clamp Meter with Hz, 1000A AC, 750V AC/1000V DC

Model: 512 | Order No: 2117.68 | UPC: 685338110050

Built into a rugged mechanical case and is designed using quality polycarbonate materials. Measures 1ms peak function for fast capture of signals and frequency from V and A.

Built into a rugged mechanical case and is designed using quality polycarbonate materials. Measures 1ms peak function for fast capture of signals and frequency from V and A.

Sale Price $179.55 USD
Regular Price $189.00 USD
Availability 3 to 4 Weeks
Quantity

Add In-House Traceable Calibration to your AEMC 512 Clamp-on Meter

Add In-House Traceable Calibration to your AEMC 512 Clamp-on Meter


AEMC 512 Offers

The AEMC 512 Clamp-On Meter is a general purpose professional clamp-on meter that measures up to the toughest standards. This meter offers a complete set of measurement ranges and is in compliance with international safety and quality standards to ensure a professional and reliable measuring tool. The AEMC 512 is auto-ranging and provides the best measurement range and resolution for troubleshooting. It has a high resolution 40A range.

The AEMC 512 measures AC Amps, AC Volts, DC Volts, Ohms, Continuity (with beeper), Frequency (from V or A) and has a Diode Test function.

The AEMC 512 is sized for a comfortable, one-handed operation. This model is a True RMS clamp-on that provides RMS measurements for today's non-linear electrical environments. The jaw opening for the AEMC 512 is 1.575" (40mm).

Features

  • Standard size, full function clamp-on meter
  • 1000AAC current measurements
  • 750VAC/1000VDC volt measurements
  • TRMS measurements
  • Resistance measurement to 4000Ω
  • Continuity with beeper below 40Ω
  • Frequency measurements from V and A
  • Diode test
  • 1ms Peak function for fast capture of signals
  • Hold function to "freeze" readings
  • Large easy-to-read 4000-count display
  • 42-segment analog bargraph
  • Includes test leads and soft carrying pouch

Applications

  • Commercial, industrial, residential and HVAC/R troubleshooting
  • Power panel, junction box and battery bank monitoring
  • AC or DC motor testing
  • Power plant troubleshooting
  • Electrical testing and troubleshooting on non-linear loads, such as adjustable speed drives and computers

AEMC 512 Specifications

AC Current
Range 0.05A to 1000A
Resolution 40A: 0.01A
400A: 0.1A
1000A: 1A
Basic Accuracy 50 to 500Hz: ±1.9% of Reading + 5cts
Frequency Range 50 to 500Hz
Overload Protection 40A: 800Arms
400A: 1500Arms
1000A: 1500Arms
AC Volts
Input Range 0.5V to 750V
Range 400V / 750V
Resolution 0.1V / 1V
Accuracy ±1.2% of Reading + 5cts
Input Impedance 10MW
Overload Protection 1000Vrms
Frequency Current Input
Range 4kHz
Resolution 1Hz
Minimum Input Signal 2Arms
Accuracy ±0.1% of Reading + 1ct
Frequency Voltage Input
Range 10kHz
Resolution 10Hz
Minimum Input Signal 5Vrms
Accuracy ±0.1% of Reading + 1ct
DC Volts
Range 0.2 to 1000V
Resolution 400V: 0.1V
1000V: 1V
Accuracy ±0.75% of Reading + 2cts
Input Impedance 10MW
Overload Protection 1200Vrms
Continuity
Range Beeper
Measurement <40W
Max. Test Voltage 3VDC
Overload Protection 600Vrms
General Specifications
Jaw Opening Size 1.575" (40mm)
Battery 9V, NEDA 1604 or 6F22 or 006P
Dimensions 9.53 x 2.60 x 1.42" (242 x 66 x 36mm)
Weight 14.10oz (400g) with batteries
Click here for complete specifications on the AEMC 512

What's included with the AEMC 512

  • True RMS Clamp-on Meter
  • Pair of test leads
  • Soft Carrying Case
  • 9V Battery
  • Manual

Click on a category to view a selection of compatible accessories with the AEMC 512 True RMS Clamp Meter with Hz, 1000A AC, 750V AC/1000V DC.

AEMC 2154.74 Leads with Safety Needle Tips, Colour Coded, Set of 2, 5ft 2154.74
Color-coded 5ft lead with safety needle tips (2mm), 1000V CAT IV, 15A. For use with the AEMC 501, 503, 511-514, 565, 5231, 5233, CM605, 670, 675 & F07.
