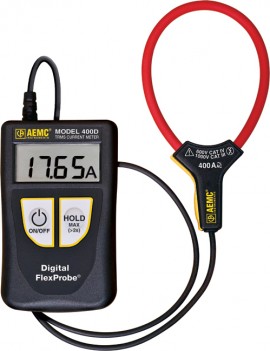

AEMC 400D-6 Digital FlexProbe with 2ft Lead

Model: 400D-6 | Order No: 2153.21 | UPC: 685338105056

AEMC 400D-6 Digital FlexProbe with 2ft Lead

Model: 400D-6 | Order No: 2153.21 | UPC: 685338105056

An ideal addition to the electrician's tool kit, the Digital FlexProbe® series can be used for TRMS AC current measurements and are rated at 600V CAT IV. They provide a welcomed solution when accessing electrical conductors is difficult and in tight places.

An ideal addition to the electrician's tool kit, the Digital FlexProbe® series can be used for TRMS AC current measurements and are rated at 600V CAT IV. They provide a welcomed solution when accessing electrical conductors is difficult and in tight places.

This product has been discontinued. Click here for the replacement model(s).


AEMC 400D-6 Offers

An ideal addition to the electrician's tool kit, the Digital FlexProbe® series can be used for TRMS AC current measurements and are rated at 600V CAT IV. They provide a welcomed solution when accessing electrical conductors is difficult and in tight places.

The Model 400D-6, available with a 6" sensor, has a measurement range starting at 20mA, and is designed for work in residential, commercial and light industrial applications. It can be used to check electrical distribution systems up to 400 Amps.

Although they are high-performance instruments, the Digital FlexProbe® series remain very simple to use: two buttons are all it takes to start the instrument, deactivate the auto power-off, HOLD the value on the display or store the maximum value (MAX HOLD). The values are read directly on the built-in 4000-count display.

They are ergonomically designed for comfortable handheld use even when bulky gloves are required. The optional articulating, magnetic Multifix mounting system accessory makes it simple to hang on a wall, door, table edge or clip onto a belt.

Features

  • Measurement from 20mA to 400A
  • Available with 6" sensor length
  • Resolution down to 1mA
  • Sensor diameter 1.77"
  • Auto-ranging
  • HOLD feature
  • Direct reading
  • Compact and simple to use
  • Flexible current sensor
  • True RMS
  • Safety rating of 600V CAT IV

Applications

  • Measuring branch current in breaker panels
  • Measurement of industrial loads
  • HVAC/R current measurements
  • Residential and commercial site current monitoring
  • General AC current measurements

Specifications

Models 400D 4000D
Electrical
Display Range 4Aac 40Aac 400Aac 40Aac 400Aac 4000Aac
Measurement Range 0.020A to 3.999A 4.00A to 39.99A 40.0A to 399.9A 0.1A to 39.99A 40.0A to 399.9A 400A to 3999A
Resolution 1mA 10mA 100mA 10mA 100mA 1A
Accuracy ±(2% + 10cts) ±(1.5% + 2cts) ±(1.5% + 2cts) ±(2% + 10cts) ±(1.5% + 2cts) ±(1.5% + 2cts)
Sensor Diameter 400D-6 : Ø 1.77" (45mm) / 400D-10 : Ø 2.75" (70mm) 4000D-14 : > Ø 3.94" (> 100mm)
Sensor Length 400D-6 : 6.69" (170mm) / 400D-10 : 9.84" (250mm) 4000D-14 : 13.78" (350mm)
Bandwidth 10Hz to 3kHz
Display 4000 count LCD
Mechanical
Power Supply 2 x 1.5V AAA / LR3 batteries
Safety IEC 61010, 600V CAT IV
Operating Temperature 32° to 122°F (0° to 50°C)
Weight Approx. 130g
Casing Dimensions 3.94 x 2.36 x 0.79" (100 x 60 x 20mm)
Connection Cable Length 2.62 ft (0.8 m)
Click here for complete specifications on the AEMC 400D-6

What's included with the AEMC 400D-6

  • Digital FlexProbe®
  • 2 x AAA Batteries
  • User Manual

AEMC® - What Is A Rogowski Coil?

Customer Reviews for the AEMC 400D-6

Ask a question about AEMC 400D-6 Digital FlexProbe with 2ft Lead

AEMC 400D-6 Offers

An ideal addition to the electrician's tool kit, the Digital FlexProbe® series can be used for TRMS AC current measurements and are rated at 600V CAT IV. They provide a welcomed solution when accessing electrical conductors is difficult and in tight places.

The Model 400D-6, available with a 6" sensor, has a measurement range starting at 20mA, and is designed for work in residential, commercial and light industrial applications. It can be used to check electrical distribution systems up to 400 Amps.

Although they are high-performance instruments, the Digital FlexProbe® series remain very simple to use: two buttons are all it takes to start the instrument, deactivate the auto power-off, HOLD the value on the display or store the maximum value (MAX HOLD). The values are read directly on the built-in 4000-count display.

They are ergonomically designed for comfortable handheld use even when bulky gloves are required. The optional articulating, magnetic Multifix mounting system accessory makes it simple to hang on a wall, door, table edge or clip onto a belt.

Features

  • Measurement from 20mA to 400A
  • Available with 6" sensor length
  • Resolution down to 1mA
  • Sensor diameter 1.77"
  • Auto-ranging
  • HOLD feature
  • Direct reading
  • Compact and simple to use
  • Flexible current sensor
  • True RMS
  • Safety rating of 600V CAT IV

Applications

  • Measuring branch current in breaker panels
  • Measurement of industrial loads
  • HVAC/R current measurements
  • Residential and commercial site current monitoring
  • General AC current measurements

Specifications

Models 400D 4000D
Electrical
Display Range 4Aac 40Aac 400Aac 40Aac 400Aac 4000Aac
Measurement Range 0.020A to 3.999A 4.00A to 39.99A 40.0A to 399.9A 0.1A to 39.99A 40.0A to 399.9A 400A to 3999A
Resolution 1mA 10mA 100mA 10mA 100mA 1A
Accuracy ±(2% + 10cts) ±(1.5% + 2cts) ±(1.5% + 2cts) ±(2% + 10cts) ±(1.5% + 2cts) ±(1.5% + 2cts)
Sensor Diameter 400D-6 : Ø 1.77" (45mm) / 400D-10 : Ø 2.75" (70mm) 4000D-14 : > Ø 3.94" (> 100mm)
Sensor Length 400D-6 : 6.69" (170mm) / 400D-10 : 9.84" (250mm) 4000D-14 : 13.78" (350mm)
Bandwidth 10Hz to 3kHz
Display 4000 count LCD
Mechanical
Power Supply 2 x 1.5V AAA / LR3 batteries
Safety IEC 61010, 600V CAT IV
Operating Temperature 32° to 122°F (0° to 50°C)
Weight Approx. 130g
Casing Dimensions 3.94 x 2.36 x 0.79" (100 x 60 x 20mm)
Connection Cable Length 2.62 ft (0.8 m)
Click here for complete specifications on the AEMC 400D-6

What's included with the AEMC 400D-6

  • Digital FlexProbe®
  • 2 x AAA Batteries
  • User Manual

AEMC® - What Is A Rogowski Coil?
