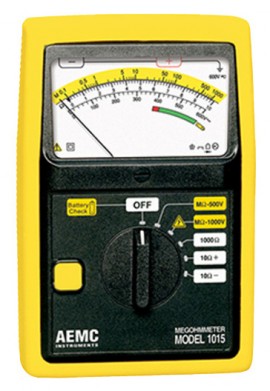

AEMC 1015 Analog Megohmmeter, 500V, 1000V

Model: 1015 | Order No: 1403.01 | UPC: 685338150049

AEMC 1015 Analog Megohmmeter, 500V, 1000V

Model: 1015 | Order No: 1403.01 | UPC: 685338150049

This analog instrument has four easy-to-read scales. The megohm scale is an easy-to-read log scale graduated from 0.1 to 1000MΩ. The ohm scale is linear with a range from 0 to 10Ω. It permits insulation resistance testing at 500V and 1000V, and resistance measurements up to 1000Ω.

This analog instrument has four easy-to-read scales. The megohm scale is an easy-to-read log scale graduated from 0.1 to 1000MΩ. The ohm scale is linear with a range from 0 to 10Ω. It permits insulation resistance testing at 500V and 1000V, and resistance measurements up to 1000Ω.

Sale Price $650.75 USD
Regular Price $685.00 USD
Availability 3 to 4 Weeks
Quantity

Add In-House Traceable Calibration to your 1015

Add In-House Traceable Calibration to your 1015


AEMC 1015 Offers

Features

  • True Megohmmeter®
  • Test voltage combinations 500V and 1000V
  • Insulation measurements to 1000MΩ
  • Push button for battery check
  • Resistance range to 1000Ω
  • 0 to 10Ω+ and 0 to 10Ω- continuity ranges
  • Continuity measurements with 200mA test current
  • Compact and lightweight
  • Large, direct-reading, colored scale
  • 600V test voltage range (safety check)
  • Supplied with a yellow, non-slip, shockproof rubber housing and soft carrying case
  • Designed to international and safety standards

Applications

  • Plant and field service
  • Harsh environments

AEMC 1015 Specifications

Insulation Tests
Test Voltage 500 V: 0.1 to 1000MΩ
1000 V: 0.1 to 1000MΩ
Short Circuit Current Max: ≤6mA
Accuracy ±5% of Reading
Voltage Test/Safety Check AC: 0 to 600 V
Resistance Tests
Measurement Range 0 to 1000Ω
Accuracy ±3% Full Scale
Short Circuit Current ≥2mA
Open Circuit Voltage 4.5 to 6.5 V
General Specifications
Power Supply 4 x 1.5V "AA" Alkaline Batteries
Dimensions 6.6 x 4.2 x 2.2" (167 x 106 x 55 mm)
Weight 1.45 lbs (650 g)
Click here for complete specifications on the AEMC 1015

What's included with the AEMC 1015

  • Analog Megohmmeter
  • Shockproof Rubber Housing
  • Set of Test Leads (Red and Black)
  • Black Test Probe
  • Red Alligator Clip
  • Spare Fuse (Inside Megohmmeter)
  • 4 x 1.5V "AA" Alkaline Batteries
  • Soft Carrying Case
  • User Manual

AEMC: Introduction to Insulation Resistance Testing


This video will serve as an introduction to insulation resistance testing. Additionally, it will go over the spot reading test, time-resistance test, and step voltage test which are the three commonly used methods for testing insulation resistance and the user will need a megohmmeter to perform these tests.
