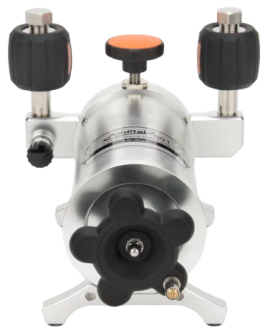

The 901B Low Pressure Test Pump is a hand operated pressure pump designed to generate pressures from -6 psi (-0.4 bar) to 6 psi (0.4 bar). A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 0.1 Pa (0.001 mbar). It makes use of an isothermal bellows chamber which is designed for reducing the possible effects of environmental temperature change.
The 901B Low Pressure Test Pump is a hand operated pressure pump designed to generate pressures from -6 psi (-0.4 bar) to 6 psi (0.4 bar). A high-quality screw press is designed for fine pressure adjustment, with an adjustment resolution up to 0.1 Pa (0.001 mbar). It makes use of an isothermal bellows chamber which is designed for reducing the possible effects of environmental temperature change.
Features
| Media | Air |
| Generated Pressure Range | 6 psi (0.4 bar) vacuum to 6 psi (0.4 bar) positive pressure |
| Adjustment Resolution | 0.1 Pa (0.001 mbar) |
| Material | Ram/adapters: SS Body: SS, aluminum Seals: Buna-N, PTFE, Copper Alloy |
| Connection | Hand-tight connectors for both test gauge and reference gauge |
| Dimensions | Height: 5.7" (145 mm) Base: 9.65" (245 mm) x 6.50" (165 mm) |
| Weight | 3.5 lb (1.6 kg) |
| Warranty | 1 year |
Click on a category to view a selection of compatible accessories with the Additel 901B Series Pneumatic Pump with carrying case, -6 to 6 psi / -0.4 to 0.4 bar, 1/2" NPT F.
| Media | Air |
| Generated Pressure Range | 6 psi (0.4 bar) vacuum to 6 psi (0.4 bar) positive pressure |
| Adjustment Resolution | 0.1 Pa (0.001 mbar) |
| Material | Ram/adapters: SS Body: SS, aluminum Seals: Buna-N, PTFE, Copper Alloy |
| Connection | Hand-tight connectors for both test gauge and reference gauge |
| Dimensions | Height: 5.7" (145 mm) Base: 9.65" (245 mm) x 6.50" (165 mm) |
| Weight | 3.5 lb (1.6 kg) |
| Warranty | 1 year |
Click on a category to view a selection of compatible accessories with the Additel 901B Series Pneumatic Pump with carrying case, -6 to 6 psi / -0.4 to 0.4 bar, 1/2" NPT F.
