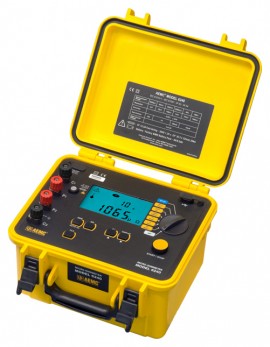

AEMC 6240 Micro-Ohmmeter with DataView Software, 10A

Model: 6240 | Order No: 2129.80

Rugged, low resistance tester designed for both plant maintenance and field use. It is a cost effective, feature rich instrument designed for checking contact resistance, bond resistance and other low resistance connections. Features four-terminal Kelvin resistance measurement which eliminates test lead resistance.

Sale Price $2750.25 USD
Regular Price $2,895.00
Availability 1 in Stock
Quantity
Add In House NIST Traceable Calibration to your 6240

Clear selected options

Add In House NIST Traceable Calibration to your 6240

Clear selected options


Calibration Lab


AEMC 6240 Offers

Utilizing a four-lead Kelvin method of testing, the AEMC 6240 Micro-Ohmmeter accurately measures very low resistance within 0.25%. Resistance measurements are automatically calculated from 1µΩ to 400Ω with resolutions down to 1µΩ. The AEMC 6240 has selectable test currents of 10A, 1A, 100mA and 10mA and includes a polarity reversal function.

The AEMC 6240 is designed to conduct tests on both resistive and inductive material. Up to 99 measurements can be stored and printed directly to a printer or from a PC. Polarity reversal is easily accomplished with a push of a button. The resistance measurements of both positive and negative test results, as well as the average, are displayed. A large easy-to-read multi-line backlit display indicates all test result information including the resistance measurement, test current and test voltage. An internal NiMH battery pack is rechargeable from 110/230V, 50/60Hz. A fully charged battery can perform up to 850, 10A tests.

The DataView® software included allows you to: download data, temperature compensate the test results, store data and print reports using predefined templates or custom templates you create.

Features

  • Measures from 1μΩ to 400Ω
  • Test current selection from 10mA to 10A
  • Manual temperature compensation (with DataView® software)
  • Front panel polarity reverse function
  • Stores up to 99 test results
  • Operator safety by automatic discharge of residual charge on the equipment under test
  • Auto store of multiple test results
  • Internal, rechargeable batteries conduct up to 850, 10A tests
  • Built-in battery pack recharger recharges the batteries by connecting to the AC line using a standard line cord
  • 4-Wire measurement with automatic compensation of undesirable voltages and lead resistance
  • Large multi-function backlit display
  • Direct display of the measurement with its units, range and test current
  • Rugged, sealed case

Applications

  • Ground connections and continuity measurement
  • Resistance measurements on motors and small transformers
  • Contact resistance measurements on breakers and switches
  • Component measurement
  • Electrical cable resistance measurement
  • Mechanical bond tests
  • Wire to terminal connections
  • Aircraft and rail bonds
