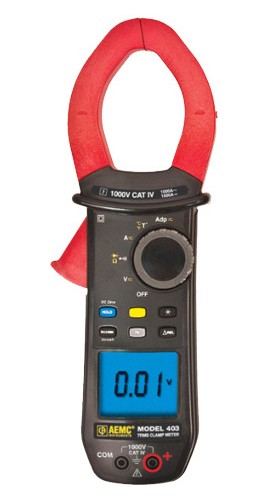

AEMC 403 True RMS Clamp Meter with Temperature, 1000V AC/DC, 1000A AC/1500A DC

Model: 403 | Order No: 2139.21

Safety Rated at 1000V CAT IV, it is safe to operate in all electrical environments. It is rugged enough for the most demanding work environments and will withstand both dust and water spray with its IP54 rating. Measures True RMS, 1000V AC/DC, 1000A AC/1500A DC, Ohms, Continuity, and Temperature.

Sale Price $312.55 USD
Regular Price $329.00
Availability 1 to 2 Weeks
Quantity
Add In House NIST Traceable Calibration to your 403

Clear selected options

Add In House NIST Traceable Calibration to your 403

Clear selected options



Recommended Accessories

Calibration Lab


AEMC 403 Offers

The AEMC 403 TRMS Clamp-on Meter provides a new standard for safety and measurement capability not available in any other clamp meter sold today. It is ergonomically designed and easily used by one hand, including function selection and button pushing even with a glove on. In addition to the standard measurement of volts, amps, frequency, resistance, diode checking and continuity, the Model 403 offers several unequaled functions including: True InRush®, Adapter function, Delta relative function, Temperature measurement and more.

Features

  • 1000V CAT IV Rated
  • UL 94 flame retardant self-extinguishing
  • IP54 Rated
  • 10,000-count blue electroluminescent backlit display
  • Measures up to 1000VAC (1400V peak), 1000VDC and AC and DC with resolution to 10mV
  • Measures up to 1000AAC and 2000ADC
  • Measures temperature in °F or °C using a K-type Thermocouple
  • Measures frequency to 20kHz with 0.1Hz resolution
  • Auto selects AC or DC measurement voltage
  • True InRush® current measurement with 1mS capture
  • Delta relative function for tracking deviation from reference values
  • Adapter function to accept inputs from sensors and transducers with a millivolt output with user programmable scaling
  • Jaw opening up to 1.89"
  • Leads are constructed with a flexible silicone material

Applications

  • General purpose electrical troubleshooting
  • Motor start up analysis
  • Voltage troubleshooting
  • Bond and continuity checking
  • Temperature analysis

AEMC 403 Specifications

Electrical Specifications
A AC 0.15 to 1000A (1500A peak)
A DC 0.15 to 1000A
Best Accuracy 1% of Reading + 3 counts
V AC 0.15 to 1000A (1400V peak)
V DC 0.15 to 1400V
Best Accuracy 1% of Reading + 3 counts
Hz Current: 5.0Hz to 2000Hz
Voltage: 5.0Hz to 20.00Hz
Ohm 0.1Ω to 99.99kΩ
Open Circuit Voltage ≤8V
Measurement Current ≤680μA
Continuity Threshold Adjustable from 1 to 999Ω
Temperature (K type) -60 to 100°C (-76 to +1832°F)
Mechanical Specifications
Clamping Diameter 1.89" (48mm)
Display Backlit LCD
Resolution 10,000 counts
Auto Power Off Yes
Electrical Safety as per IEC 61010 1000V CAT IV; 1000V CAT III
Power Supply 4x1.5V AA
Dimension & Weight 3.62 x 10.70 x 1.31" (92 x 272 x 41mm)/ 600g
Click here for complete specifications on the AEMC 403
